1370: XRF Sample Cup Work Station, Six (6) Cavity, 3

1370: XRF Sample Cup Work Station, Six (6) Cavity, 3" Dia, 2/pkg

1390: XRF Sample Cup Work Tray, Fourty (40) Cavity, 3

1390: XRF Sample Cup Work Tray, Fourty (40) Cavity, 3" Dia, 1/pkg

1380: XRF Sample Cup Work Station, Twelve (12) Cavity, 3" Dia, 1/pkg

$500.00
Availability: In stock
SKU
1380

Chemplex® XRF Sample Cup Work Stations provide the analyst with an orderly means for handling sample cups after affixing thin-film sample support windows, preventing contamination of the thin-film by eliminating contact with a counter top surface and facilitating the sample filling procedure with Transfer Pipettes.

Features

Organize sample cup order

Accommodate 24 to 45mm diameter sample cups

Avoid contamination issues

Use as sample cup tray and filling station

Single and multiple cavity work station

Durable aluminum construction

Chemplex XRF Sample Cup Work Stations provide the analyst with an orderly means for handling sample cups after affixing thin-film sample support windows, preventing contamination of the thin-film by eliminating contact with a counter top surface and facilitating the sample filling procedure with Transfer Pipettes.

A work station consists of one or six individual conical shaped cavities that allow acceptance of any size sample cups of the same or dissimilar diameters ranging from 24 mm to 45 mm. The conical shape of the cavity allows the smaller diameter sample cups to rest lower into the cavity than the larger sample cup diameters while maintaining the sample cups level in position. Multiple cavity work stations allow for the advanced preparation of a large number of samples in readiness for transporting to the instrumentation for x-ray analysis and a means of storage for future referral.

Model 1360 XRF Single Sample Cup Work Station

This single position cavity work station is 3" (76 mm) in diameter and will accept any sample cup within 24 to 45 mm in diameter. The small compact size work station is suitable for instruments designed for single sample accommodation with adequate time in between analysis for preparing additional samples.

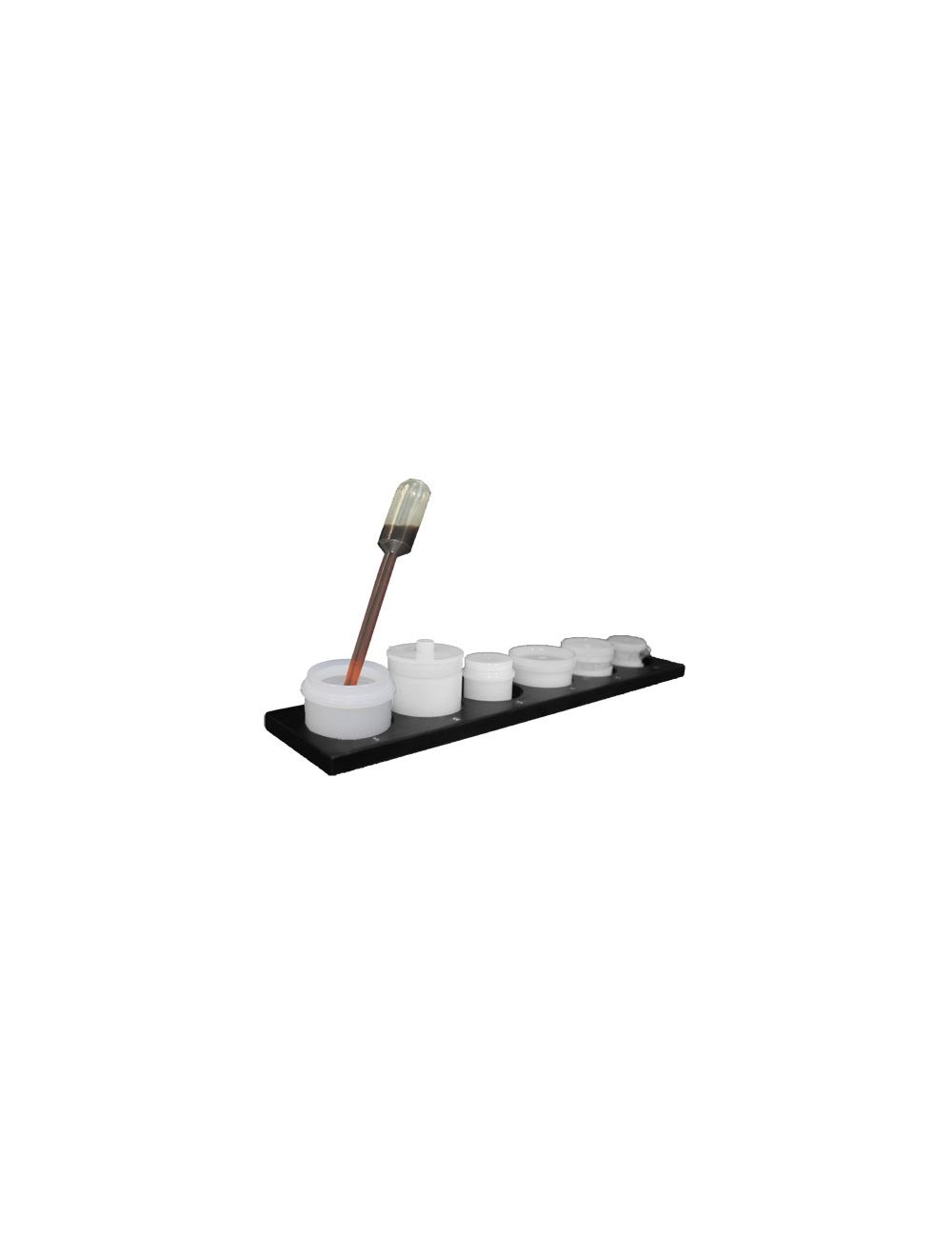

Model 1370 Multiple XRF Sample Cup Work Station

This multi-cavity work station is 3” wide x 12.5” long (7.6 cm x 31.65 cm) and will accept any combination of different sample cups within 24 to 45 mm in diameter. There are six cavities in a single row with sequential numbers stamped in white adjacent to each cavity for identification purposes. Ideally suitable for use with instruments that accommodate multiple samples and for laboratories equipped with additional instruments that may be assigned their own work stations for convenience and to avoid potential inadvertent confusions.

(Fabricated from black anodized aluminum)

See "Transfer Pipettes" for filling XRF Sample Cups resting in Chemplex Work Stations

Patent Pending

More Information

A work station consists of one or more individually conical shaped concavities that allow acceptance of any size sample cups of the same or dissimilar diameters ranging from 0.94” (24mm) to 1.78” (45mm). All of them feature a conical shaped cavity that allows the smaller diameter sample cups to rest lower into the cavity than the larger sample cup diameters while maintaining the sample cups level in position. Multi-cavity work stations allow for the advanced preparation of a large number of samples in readiness for transporting to the instrumentation for x-ray analysis and a means for storage for future referral.


The Single Sample Cup Workstation has a compact size and is suitable for instruments designed for single sample accommodations with adequate time in between analysis for preparing additional samples.

The Multiple Sample Cup Workstations have numbered cavities for identification purposes. Ideally suitable for use with instruments that accommodates multiple samples and for laboratories equipped with multiple instruments for convenience and to avoid potential inadvertent sample mis-identifications.
