Sample Cup Selection Guide

The following selection guide lists all of the XRF Sample Cups manufactured by Chemplex® Industries. Use of the table is quite simple, just click on the heading of the column of interest and the table will be refreshed, and sorted by the values selected in the column. Click on the column heading again and it will be sorted in the reverse order. This will allow grouping of the XRF Sample Cups by the parameters of interest to suite your needs. For example, when looking for all Chemplex® XRF Sample Cups with a diameter of 1.52”, click on the column heading of “Outside Dia.” And then scroll to the entries with the value of 1.52” (38.6mm). All of them will be listed together.

Packages:

All Chemplex XRF Sample Cups are packaged 100 sets per package.

Item Quantity Discount:

Order a unique item quantity of 20-39, and receive $5.00 off the standard price per bag.

Order a unique item quantity of 40 or more, and receive $10.00 off the standard price per bag.

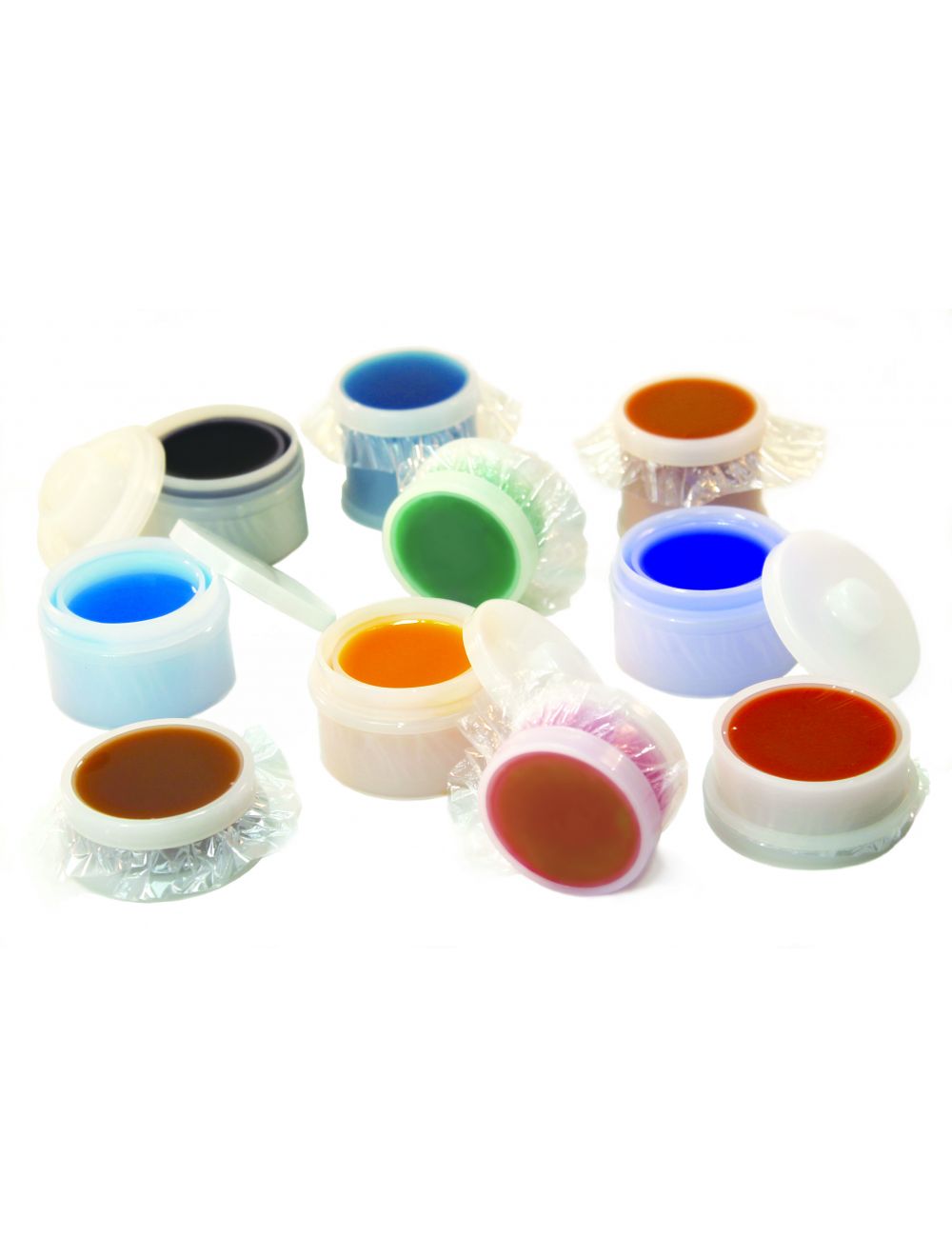

XRF Sample Cups and Thin-Film Sample Support Windows are the basic necessities for containing and analyzing samples by XRF Spectroscopy. Superficially, the procedure appears relatively simple. Attach a thin-film to one end of a new sample cup, introduce the sample and insert it in an x-ray machine for elemental analysis. In a simple world where there’s only one x-ray machine model with one size XRF sample cup holder and one element of interest in a sample, the process might be simple. However, that is not true to reality. There are innumerable XRF instrumentation manufacturers and different model machines with each having their own requisite type and size of samples, sample cup holders, multiple elements and concentrations of interest, operating conditions for analysis and the list continues. It is for these reasons that no single XRF Sample Cup and type and gauge of thin-film sample support window will universally suffice.

*Please see the "Additional Info" tab for Sample Cup Compatibility details.

More Information

Instrument Compatibility

The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.

Manuf Models Sample Cup Cat No
Bruker S2 Puma 2140, 2143, 2144 & 2154
Bruker S2 Puma w/ Xflash 2143, 2144 & 2154
Bruker S2 Ranger 2143
Bruker S4 2140
Bruker S8 w/ Flex Loader 2143, 2144 & 2154
Bruker S8 Tiger 2143, 2144, 2154, 1095 & 2195
Horiba SLFA Units 1850, 1083 & 1084
Horiba 6100/6800/60A 1086 & 1087
Horiba Mesa 7220 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring)
Innov-X Hand Held Units 1330, 1330-SE & 1340
Oxford Lab-X 1940L, 1940-ox
Oxford MDX 1935-ox, 1940-ox
Oxford Replacement Cells 54-LX6922 1440L
Oxford Replacement Cells & Covers: 54-CK-100 1935-ox
Oxford Replacement Cells & Covers: 54-CK-100 and L242 Holder 1940-ox
Malvern Panalytical Epsilon 3XL, MiniPal 2135
Malvern Panalytical Axios P2
Malvern Panalytical Epsilon 5 2145, 2146
Malvern Panalytical Venus 200 1095, 2195
Rigaku Mini-Z

2140

Rigaku Primus, Rix, ZSX-100

1095, 2195

Spectro XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135
Spectro IQ 2132
Spectro Phoenix II 2131
Spectro Scout 3106, 3110, 3115 & 3120
Thermo Advant'x 2146
Xenemetrix X-Calibur, X-Cite 2131, 2132, 2132S, 1540
XOS Sindie®, Clora, Signal, HD Maxine, Phoebe, Petra 1083, 1084 & 1850
XOS Sindie 3rd Generation 3130 & 3132

Recycling

Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.

Recycle_2_HDPE

® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.

No
Write Your Own Review
You're reviewing:Sample Cup Selection Guide
Your Rating
Grouped product items
Cat. No. Open Ends Outside Dia. Max O.D. Aperture Vol Height Price Price for
Qty 20+
Price for
Qty 40+
Qty
2148
Double
1.76" (44.7mm)
1.85" (46.9mm)
1.57" (39.9mm)
22
1.32" (33.5mm)
$65 $60 $55
1060
Double
1.23" (31.2mm)
1.23" (31.2mm)
0.96" (24.4mm)
9
0.93" (23.6mm)
$50 $45 $40
1065
Single
1.23" (31.2mm)
1.23" (31.2mm)
0.96" (24.4mm)
8
0.93" (23.6mm)
$50 $45 $40
1070
Double
1.52" (38.6mm)
1.52" (38.6mm)
1.19" (30.2mm)
13
0.90" (22.9mm)
$60 $55 $50
1075
Single
1.51" (38.4mm)
1.51" (38.4mm)
1.21" (30.7mm)
13
0.90" (22.9mm)
$60 $55 $50
1080
Double
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
15
0.80" (20.3mm)
$60 $55 $50
1083
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1084
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1085
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.80" (20.3mm)
$60 $55 $50
1086
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1087
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1095
Double
1.71" (43.4mm)
1.76" (44.6mm)
1.50" (38.1mm)
30
1.57" (39.9mm)
$65 $60 $55
1330
Double
1.21" (30.7mm)
1.21" (30.7mm)
0.97" (24.6mm)
7
0.90" (22.9mm)
$50 $45 $40
1330-SE
Double
1.21" (30.7mm)
1.21" (30.7mm)
0.97" (24.6mm)
7
0.90" (22.9mm)
$50 $45 $40
1340
Double
1.54" (39.1mm)
1.54" (39.1mm)
1.26" (32.0mm)
12
0.91" (23.1mm)
$60 $55 $50
1430
Single
1.22" (31.0mm)
1.22" (31.0mm)
0.97" (24.6mm)
9
0.88" (22.4mm)
$50 $45 $40
1430-SE
Single
1.22" (31.0mm)
1.22" (31.0mm)
0.97" (24.6mm)
9
0.88" (22.4mm)
$50 $45 $40
1440
Single
1.55" (39.4mm)
1.55" (39.4mm)
1.27" (32.3mm)
15
0.88" (22.4mm)
$60 $55 $50
1440L
Single
1.55" (39.4mm)
1.55" (39.4mm)
1.28" (32.5mm)
25ml
1.38" (35.1mm)
$65 $60 $55
1530
Double
1.22" (31.0mm)
1.22" (31.0mm)
0.94" (23.9mm)
9
0.91" (23.1mm)
$50 $45 $40
1530-SE
Double
1.22" (31.0mm)
1.22" (31.0mm)
0.94" (23.9mm)
9
0.91" (23.1mm)
$50 $45 $40
Out of stock
2147
Double
1.76" (44.7mm)
1.85" (46.9mm)
1.57" (39.9mm)
22
1.16" (29.5mm)
$65 $60 $55
3137
Single
0.78" (19.8mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
1540
Double
1.55" (39.4mm)
1.55" (39.4mm)
1.22" (31.0mm)
16
0.91" (23.1mm)
$60 $55 $50
1630
N/A
1.26" (32mm)
N/A
N/A
N/A
N/A
$45 $40 $35
1640
N/A
1.57" (40mm)
N/A
N/A
N/A
N/A
$50 $45 $40
1730
Single
1.21" (30.7mm)
1.21" (30.7mm)
0.97" (24.6mm)
7
0.91" (23.1mm)
$50 $45 $40
1730-SE
Single
1.21" (30.7mm)
1.21" (30.7mm)
0.97" (24.6mm)
7
0.91" (23.1mm)
$50 $45 $40
1740
Single
1.54" (39.1mm)
1.54" (39.1mm)
1.26" (32.0mm)
11
0.93" (23.6mm)
$60 $55 $50
1830
Single
1.22" (31.0mm)
1.22" (31.0mm)
0.96" (24.4mm)
7
0.87" (22.1mm)
$50 $45 $40
1830-SE
Single
1.22" (31.0mm)
1.22" (31.0mm)
0.96" (24.4mm)
7
0.87" (22.1mm)
$50 $45 $40
1840
Single
1.54" (39.1mm)
1.54" (39.1mm)
1.25" (31.8mm)
12
0.93" (23.6mm)
$60 $55 $50
1850
Single
1.69" (42.9mm)
1.87" (47.5mm)
1.41" (35.8mm)
13
0.77" (19.6mm)
$60 $55 $50
1930
Double
1.25" (31.4mm)
1.25" (31.4mm)
0.96" (24.4mm)
8
0.84" (21.3mm)
$50 $45 $40
1930-SE
Double
1.25" (31.4mm)
1.25" (31.4mm)
0.96" (24.4mm)
8
0.84" (21.3mm)
$50 $45 $40
1935-OX
Double
1.23" (31.2mm)
N/A
1.13" (28.7mm)
25ml
1.51" (38.4mm)
$65 $60 $55
Out of stock
1940-OX
Double
1.61" (40.8mm)
N/A
1.13" (28.7mm)
25ml
1.51" (38.4mm)
$65 $60 $55
1940L
Double
1.55" (39.4mm)
1.55" (39.4mm)
1.27" (32.3mm)
25ml
1.39" (35.3mm)
$65 $60 $55
2132S
Double
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9
1.15" (29.2mm)
$50 $45 $40
2135
Double
1.35" (34.3mm)
1.46" (37.1mm)
1.10" (27.9mm)
11
1.17" (29.7mm)
$55 $50 $45
2140
Double
1.58" (40.1mm)
1.70" (43.2mm)
1.38" (35.0mm)
19
1.17" (29.7mm)
$55 $50 $45
2143
Double
1.58" (40.1mm)
1.62" (41.1mm)
1.38" (35.0mm)
19
1.17" (29.7mm)
$55 $50 $45
2144
Double
1.58" (40.1mm)
1.62" (41.1mm)
1.38" (35.0mm)
19
1.33" (33.8mm)
$55 $50 $45
2145
Double
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.9mm)
22
1.16" (29.5mm)
$65 $60 $55
2146
Double
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.9mm)
22
1.32" (33.5mm)
$65 $60 $55
2154
Double
1.58" (40.1mm)
1.62" (41.1mm)
1.38" (35.0mm)
19
1.33" (33.8mm)
$55 $50 $45
2195
Double
1.71" (43.4mm)
1.71" (43.4mm)
1.50" (38.1mm)
22
1.60" (40.7mm)
$65 $60 $55
P2
Double
1.76” (44.7mm)
1.81" (46.0mm)
1.57” (39.9mm)
22
1.54” (39.2mm)
$65 $60 $55
3106
Double
1.20" (30.5mm)
1.20" (30.5mm)
0.24" (6mm)
0.22
0.99" (25.1mm)
$70 $65 $60
3110
Double
1.20" (30.5mm)
1.20" (30.5mm)
0.39" (10.0mm)
0.5
0.99" (25.1mm)
$70 $65 $60
3115
Double
1.20" (30.5mm)
1.20" (30.5mm)
0.59" (15mm)
1
0.99" (25.1mm)
$70 $65 $60
3120
Double
1.20" (30.5mm)
1.20" (30.5mm)
0.79" (20.0mm)
1.5
0.91" (23.1mm)
$65 $60 $55
3130
Single
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
3132
Single
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
1940
Double
1.55" (39.4mm)
1.55" (39.4mm)
1.27" (32.3mm)
15
0.84" (21.3mm)
$60 $55 $50
3135
Single
0.78" (19.8mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
