1330: Double Open Ends, Leakage Resistent XRF Sample Cup with Overflow Reservoir Cap; 1.21" (30.7mm) Dia X 0.90" (22.9mm) Height, 100/Pkg
1330-SE: Double Open Ends, Leakage Resistent XRF Sample Cup with serrated edge on the snap-on ring and Overflow Reservoir Cap; 1.21" (30.7mm) Dia X 0.90" (22.9mm) Height, 100/Pkg
- Buy 20 for $45.00 each and save 10%
- Buy 40 for $40.00 each and save 20%
A re-sealable cap integrates an external overflow reservoir and offers the option for venting. With the series 1330 re-sealable serrated edge cap rotated in the open position, an evacuation passageway is established from within the Cell to the integrated overflow reservoir and sample chamber. By re-positioning the serrated edge cap, the passageway is closed for storage and future referral.
• Re-sealable cap with integrated vent
• External overflow reservoir integrated in cap
• "Snap-On Ring" with bead-to-indent geometry
• Available in nominal 32 and 40mm diameters
• Serrated edge "Snap-On Rings" alternatively available to facilitate thin-film trimming
• 100 sets per package
• Order 20-39 packages and receive $5.00 off standard price per package
• Order 40 or more and receive $10.00 off standard price per package
Made in USA

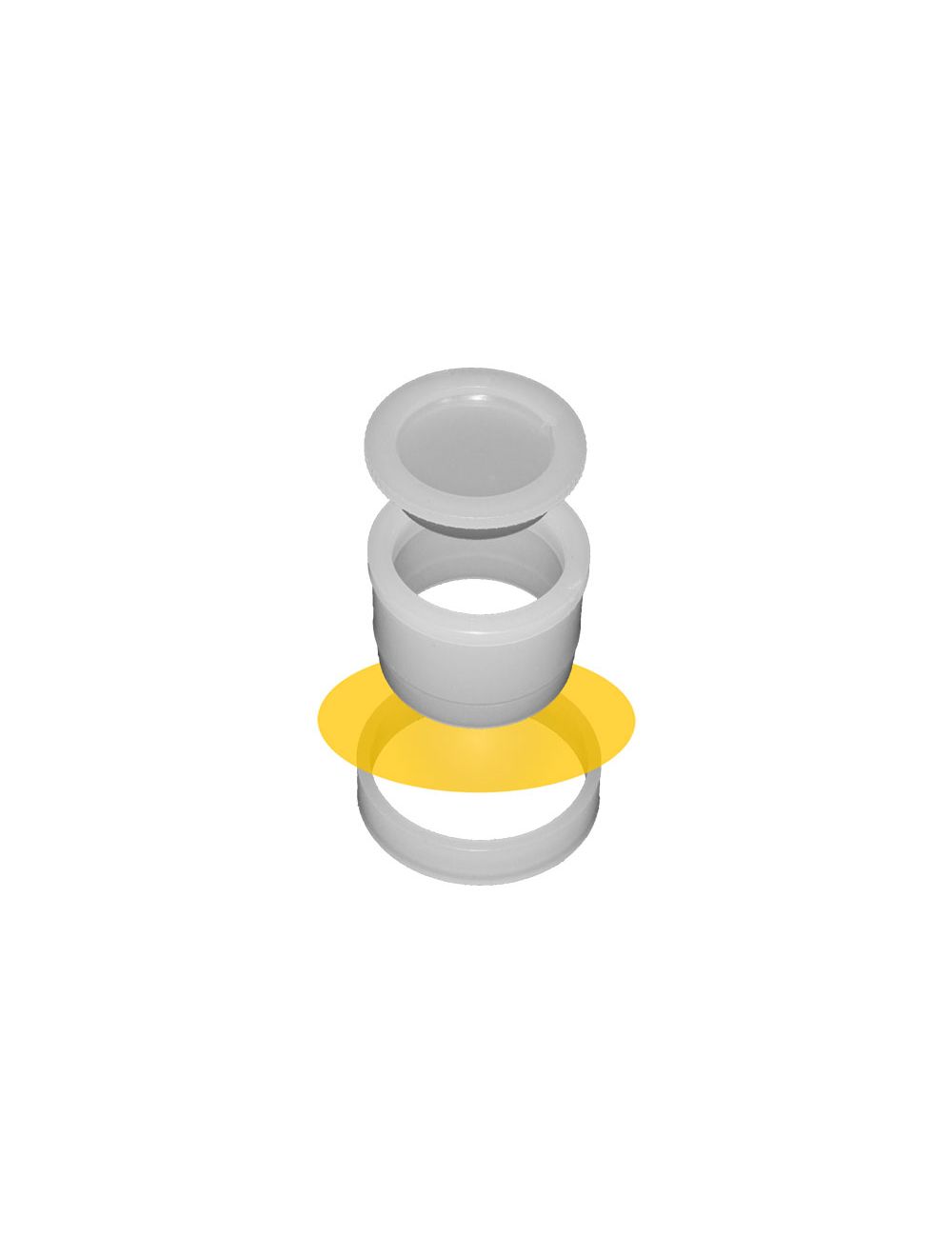

The Series 1300 XRF Sample Cups include a re-sealable cap that integrates an external overflow reservoir with the option for venting. With the re-sealable cap rotated in the open position, an evacuation passageway is established from within the Cell through the cap leading into the reservoir. By re-positioning the cap, the passageway is closed for sample storage and future referral.
The Cell neck and “Snap-On Ring” are uniquely designed with the Chemplex developed “bead-to-indent” geometry responsible for forming taut thin-film sample window planes and leak-resistant seals.
The assembled sample cup with the cap attached, creates a series of internal physical barriers intended to retard inadvertent sample particle disruption and withdrawal into the sample chamber.
Assembled sample cup illustrates the Underside view of cap
Integrated overflow reservoir in position illustrates physical barriers
To facilitate trimming extraneous thin-film, the 32mm diameter sample cups are alternatively provided with patented serrated cutting edges integrated in the upper portion of the “Snap-On Rings.” To order 32mm diameter sample cups with serrated edged thin-film assembling rings, request catalog number “1330-SE.”
Serrated edged “Snap-On Ring” is responsible
for detaching extraneous thin-film
* Reg. US Patent No: 7,981,380 B2
® Chemplex and Trimless are registered trademarks of Chemplex Industries, Inc.
The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
