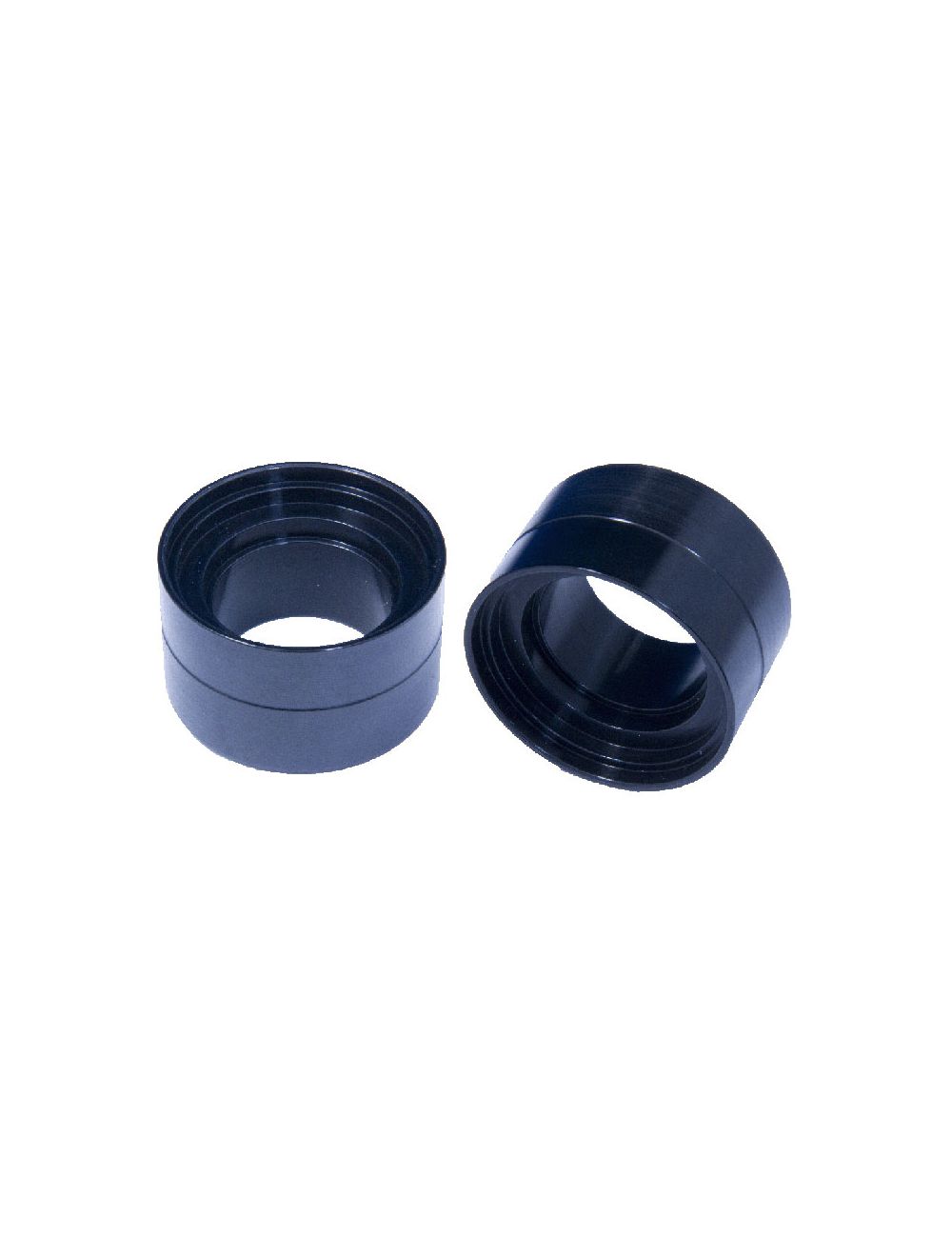

1332: Palm-held Snap on Ring and Sleeve fastener for use with 3130, 3132, 3135
Held in the palm, this handy device effortlessly aids in attaching "Snap-On Rings" and Sleeves to XRF Sample Cups. Averts contamination by contact during assembly, allows uniform application of pressure, eliminates "Snap-On Ring" and Sleeve misalignment and ensures taut thin-film sample support planes; ideally suitable for multiple sample preparations.
• Facilitates thin-film window attachments
• Small Handy and easy-to-use
• Concentrically applies uniform force
• Ensures wrinkle-free sample planes
• Useable with most Chemplex® XRF Sample Cups (See additional information)
• Durable aluminum construction
Held in the palm, this handy device greatly facilitates attaching thin-film sample support windows to Chemplex® XRF Sample Cups supplied with "Snap-On Rings" or TrimLess® Sleeves. It enables applying a uniform force to "Snap-On Rings" or TrimLess® Sleeves during the thin-film assembly procedure that eliminates misalignment, circumferentially stretches thin-film across the sample cup aperture and forms unwrinkled thin-film sample support window planes. This amazing feat is accomplished through a progressive series of counter-bores compatible to respective sample cup diameter sizes. The glossy smooth black hard coat finish adds to the ease of assembly.
® TrimLess and Chemplex are registered trademarks of Chemplex Industries, Inc.
Palm-Held Fastener Selection Guide
The following table lists the Palm-Held Fastener and the compatible Chemplex® Sample Cups.
