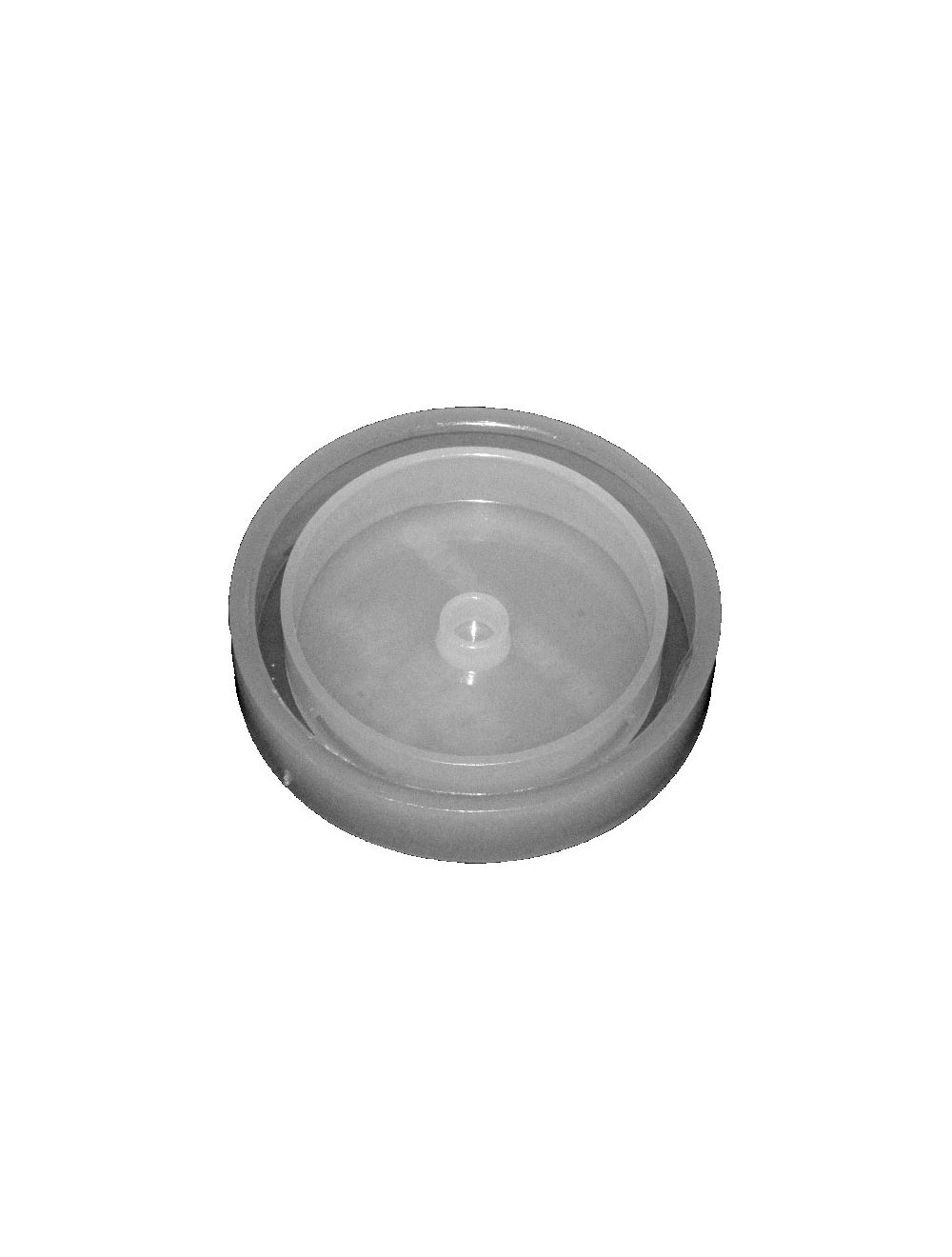

1640: XRF Sample Cup Slit-Vented “Snap-On” Cap for use with 1540 Sample Cups, 100/Pkg

$50.00
Availability: In stock
SKU
1640
  • Buy 20 for $45.00 each and save 10%
  • Buy 40 for $40.00 each and save 20%

Slit-Vented “Snap-On” Sample Cup Caps are unlike traditional caps with vented holes. These innovative caps are specifically designed to form a series of circular physical barriers when attached to a 1500 Series XRF Sample Cup. The barriers are created by the inter-relationship between integrated ridges on the interior of the cap and the Cell Neck when assembled. This forms circular troughs representing passageways leading from the interior of the sample cup to the sample chamber. The barriers present complicated paths of travel for sample particles to reach the sample chamber. Slit-Venting is used instead of traditional holes in order to increase the volumetric quantity of air withdrawal with minimum disturbances to the powdered sample substance while maintaining taut thin-film sample window planes.

Features

Attaches to 1530 & 1540 Series sample cups

Increases volume of air withdrawal

Maintains pressure equalization

Package

100 sets per package

Quantity Discount

Order 20-39 packages and receive $5.00 off standard price per package

Order 40 or more and receive $10.00 off standard price per package

Made in USA

Slit-Vented “Snap-On” Sample Cup Caps are unlike traditional caps with vented holes. These innovative caps are specifically designed to form a series of circular physical barriers when attached to a 1500 Series XRF Sample Cup. The barriers are created by the inter-relationship between integrated ridges on the interior of the cap and the Cell Neck when assembled. This forms circular troughs representing passageways leading from the interior of the sample cup to the sample chamber. The barriers present complicated paths of travel for sample particles to reach the sample chamber. Slit-Venting is used instead of traditional holes in order to increase the volumetric quantity of air withdrawal with minimum disturbances to the powdered sample substance while maintaining taut thin-film sample window planes.

The Slit Vented “Snap-On” Caps are affixed to the upper open end of the Cell containing a ridge and after the thin-film window has been attached and the sample introduced. The Caps are designed with the same Chemplex® developed “bead-to-indent” geometry of the “Snap-On Rings” for affixing thin-film window sample planes.

The “Snap-On Rings” supplied with the 1500 Series sample cups are also designed with the same “bead-to-indent” geometry used for safely securing a sample with a taut thin-film sample support window plane.

*Please see the "Additional Info" tab for analyzer equipment compatibility details.

More Information

Instrument Compatibility

The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.

Manuf Models Sample Cup Cat No
Bruker S2 Puma 2140, 2143, 2144 & 2154
Bruker S2 Puma w/ Xflash 2143, 2144 & 2154
Bruker S2 Ranger 2143
Bruker S4 2140
Bruker S8 w/ Flex Loader 2143, 2144 & 2154
Bruker S8 Tiger 2143, 2144, 2154, 1095 & 2195
Horiba SLFA Units 1850, 1083 & 1084
Horiba 6100/6800/60A 1086 & 1087
Horiba Mesa 7220 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring)
Innov-X Hand Held Units 1330, 1330-SE & 1340
Oxford Lab-X 1940L, 1940-Ox
Oxford MDX 1935-ox, 1940-ox
Oxford Replacement Cells 54-LX6922 1440L
Oxford Replacement Cells & Covers: 54-CK-100 1935-ox
Oxford Replacement Cells & Covers: 54-CK-100 and L242 Holder 1940-ox
Malvern Panalytical Epsilon 3XL, MiniPal 2135
Malvern Panalytical Axios P2
Malvern Panalytical Epsilon 5 2145, 2146
Malvern Panalytical Venus 200 1095, 2195
Rigaku Mini-Z

2140

Rigaku Primus, Rix, ZSX-100

1095, 2195

Spectro XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2132
Spectro IQ 2132
Spectro Phoenix II 2131
Spectro Scout 3106, 3110, 3115 & 3120
Thermo Advant'x 2146
Xenemetrix X-Calibur, X-Cite 2131, 2132, 2132S, 1540
XOS Sindie®, Clora, Signal, HD Maxine, Phoebe, Peta 1083, 1084 & 1850
XOS Sindie 3rd Generation 3130 & 3132

Recycling

Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and produdures.

HDPE

® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
