2140: XRF Sample Cups with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap, Double Open Ends; 1.58

2140: XRF Sample Cups with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap, Double Open Ends; 1.58" (40.1mm) Dia X 1.17" (29.7mm) Height

2144: XRF Sample Cups with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap and integrated knob, Double Open Ends; 1.58

2144: XRF Sample Cups with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap and integrated knob, Double Open Ends; 1.58" (40.1mm) Dia X 1.33" (33.8mm) Height, 100/Pkg

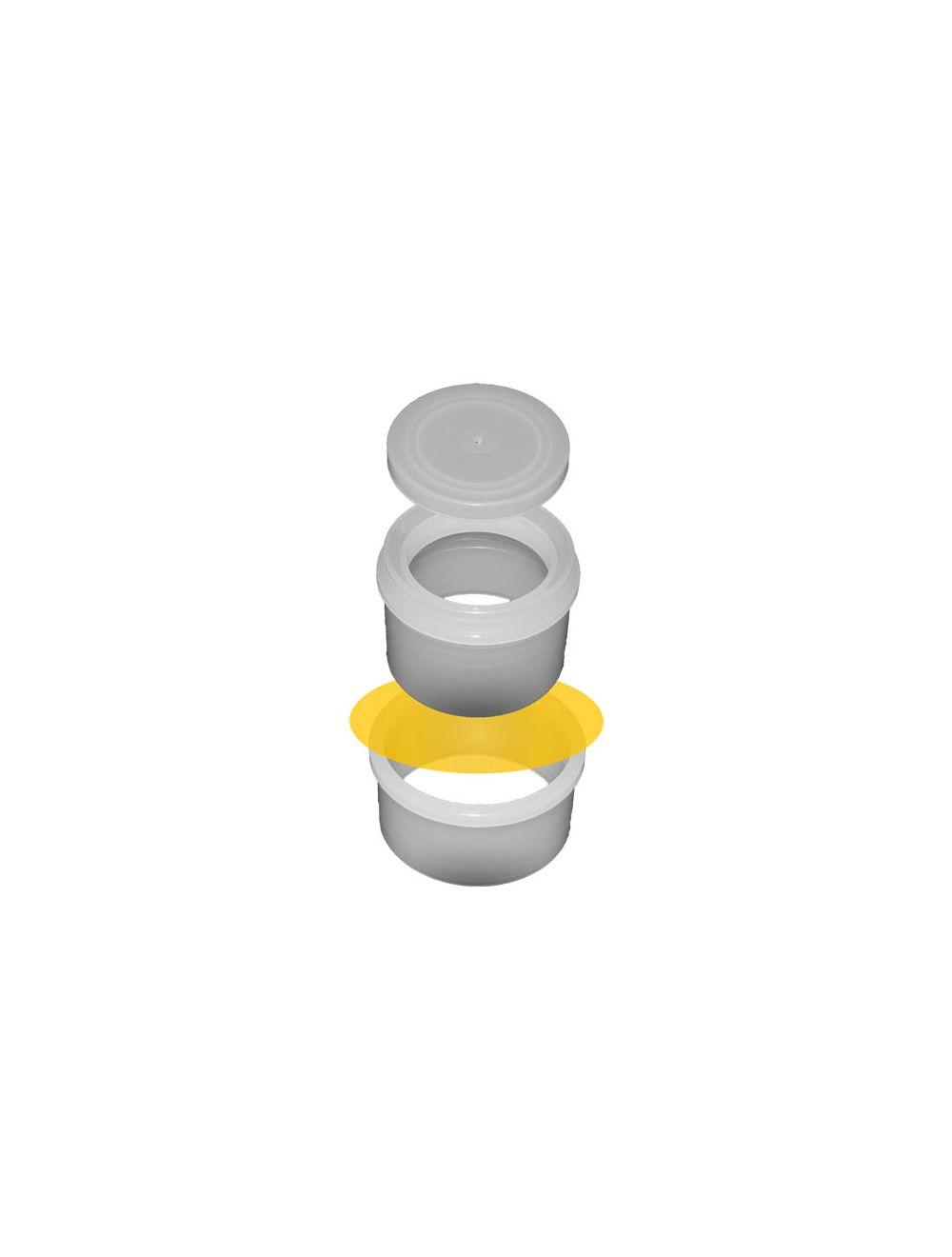

2143: XRF Sample Cups with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap, Double Open Ends; 1.58" (40.1mm) Dia X 1.17" (29.7mm) Height, 100/Pkg

$55.00
Availability: In stock
SKU
2143
  • Buy 20 for $50.00 each and save 9%
  • Buy 40 for $45.00 each and save 18%

Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.

Features

TrimLess® sleeve completely envelops the thin-film

Double open-ended

Top sample loading

Internal Overflow Reservoir

Vented friction-fitting cap

He Purge support for P2

Package

100 sets per package

Quantity Discount

Order 20-39 packages and receive $5.00 off standard price per package

Order 40 or more and receive $10.00 off standard price per package

Made in USA

Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.

Cell integrates an Internal Overflow Reservoir for collecting thermally sensitive liquid samples within the sample cup reducing the likelihood of inadvertent spillage into the sample chamber; serves as a filling level guide for uniformity of sample volume.

Integrated flange on outer cell neck diameter physically defines the distance of TrimLess® Sleeve travel over the Cell during the thin-film sample support window attachment procedure; ensures reproducible sample cup assemblies and statistically accurate x-ray data.

Extra wide TrimLess® Sleeve envelopes extraneous thin-film sample support window material to eliminate trimming excess and dealing with annoying static prone clippings.

Catalog No. P2 has been engineered with all of the features common with the 2100 series with the additional benefit to perform more efficiently with analytical instrumentation that features advanced helium flush capabilities.

Catalog numbers 2144, 2146 and 2195 are provided with integrated vented Snap-On Caps with knobs.

Registered US Patent No: 8,043,862

® SpectroCup, SpectroMembrane, TrimLess and Chemplex are registered trademarks of Chemplex Industries, Inc.

*Please see the "Additional Info" tab for analyzer equipment compatibility details.

More Information

Instrument Compatibility

The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.

Manuf Models Sample Cup Cat No
Bruker S2 Puma 2140, 2143, 2144 & 2154
Bruker S2 Puma w/ Xflash 2143, 2144 & 2154
Bruker S2 Ranger 2143
Bruker S4 2140
Bruker S8 w/ Flex Loader 2143, 2144 & 2154
Bruker S8 Tiger 2143, 2144, 2154, 1095 & 2195
Bruker 7KP19018FA 2143
Horiba SLFA Units 1850, 1083 & 1084
Horiba 6100/6800/60A 1086 & 1087
Horiba Mesa 7220 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring)
Innov-X Hand Held Units 1330, 1330-SE & 1340
Oxford Lab-X 1940L, 1940-ox
Oxford MDX 1935-ox, 1940-ox
Oxford Replacement Cells 54-LX6922 1440L
Oxford Replacement Cells & Covers: 54-CK-100 1935-ox
Oxford Replacement Cells & Covers: 54-CK-100 and L242 Holder 1940-ox
Malvern Panalytical Epsilon 3XL, MiniPal 2135
Malvern Panalytical Axios P2
Malvern Panalytical Epsilon 5 2145, 2146
Malvern Panalytical Venus 200 1095, 2195
Rigaku Mini-Z

2140

Rigaku Primus, Rix, ZSX-100

1095, 2195

Spectro XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135
Spectro IQ 2132
Spectro Phoenix II 2131
Spectro Scout 3106, 3110, 3115 & 3120
Thermo Advant'x 2146
Xenemetrix X-Calibur, X-Cite 2131, 2132, 2132S, 1540
XOS Sindie®, Clora, Signal, HD Maxine, Phoebe, Peta 1083, 1084 & 1850
XOS Sindie 3rd Generation 3130 & 3132

Recycling

Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.

HDPE

® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
