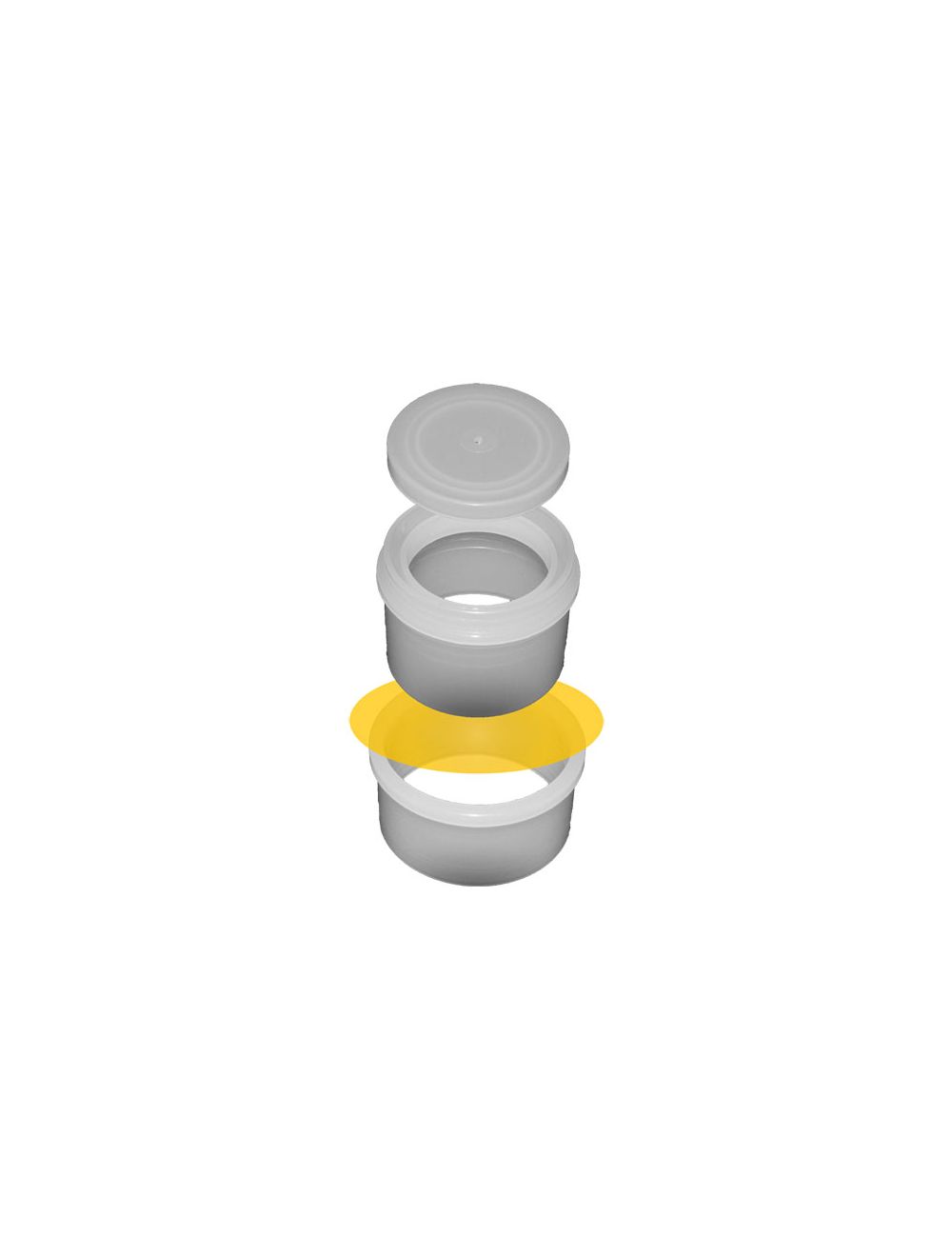

2147: SpectroCup® with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap, Double Open Ends; 1.76" (44.7mm) Dia X 1.16" (29.5mm) Height, 100/Pkg

Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.

Features

TrimLess® sleeve completely envelops the thin-film

Double open-ended

Top sample loading

Internal Overflow Reservoir

Vented friction-fitting cap

He Purge support for P2

Package

100 sets per package

Quantity Discount

Order 20-39 packages and receive $5.00 off standard price per package

Order 40 or more and receive $10.00 off standard price per package

Made in USA

$65.00
Availability: In stock
SKU
2147
  • Buy 20 for $60.00 each and save 8%
  • Buy 40 for $55.00 each and save 15%
Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions. Cell integrates an Internal Overflow Reservoir for collecting thermally sensitive liquid samples within the sample cup reducing the likelihood of inadvertent spillage into the sample chamber; serves as a filling level guide for uniformity of sample volume. Integrated flange on outer cell neck diameter physically defines the distance of TrimLess® Sleeve travel over the Cell during the thin-film sample support window attachment procedure; ensures reproducible sample cup assemblies and statistically accurate x-ray data. Extra wide TrimLess® Sleeve envelopes extraneous thin-film sample support window material to eliminate trimming excess and dealing with annoying static prone clippings. Catalog numbers 2144, 2146 and 2195 are provided with integrated vented Snap-On Caps with knobs. Registered US Patent No: 8,043,862 ® SpectroCup, SpectroMembrane, TrimLess and Chemplex are registered trademarks of Chemplex Industries, Inc.
More Information
Cat. No. 2131: is useable with Spectro Phoenix II instruments and other systems requiring less than 31 mm diameter sample cups. Cat. No. 2131, 2132: Xenemetrix X-Calibur, X-Cite Cat. No. 2132: Spectro XEPOS, iQ and other systems of similar sample cup holder dimensions Cat. No. 2135: PANalytical MiniPal, Epsilon 3XL and other systems of similar sample cup holder dimensions Cat. No. 2140: manual Bruker S2 and S4 and Rigaku Mini-Z Series Cat. No. 2143: automatic Bruker S2 with XFlash® Detector and S8 with FLEX loader Cat. No. 2144: same as 2143 except for inclusion of a knob integrated in the vented cap Cat. No. 2145: PANalytical Epsilon 5 and other models for 46 mm diameters; see 2146 for a vented cap with a knob Cat. No. 2146: same as 2145 except for inclusion of a knob integrated in the cap for Thermo Scientific Advant’X instrumentation. Cat. No. 2195 is an Internal Overflow Reservoir featured alternative for No. 1095; For Rigaku Primus series, ZSX-100 and Rix series and Panalytical Venus 200 and other instrument sample cup holders of similar dimensions with vented caps with knobs
