5080-HS: GyralGrinder® Puck and Ring Grinding Vessel, Hardened Steel

5080-HS: GyralGrinder® Puck and Ring Grinding Vessel, Hardened Steel

5080-ZC: GyralGrinder®  Puck and Ring Grinding Vessel, Zirconia Ceramic

5080-ZC: GyralGrinder® Puck and Ring Grinding Vessel, Zirconia Ceramic

5080-WC: GyralGrinder® Puck and Ring Grinding Vessel, Tungsten Carbide

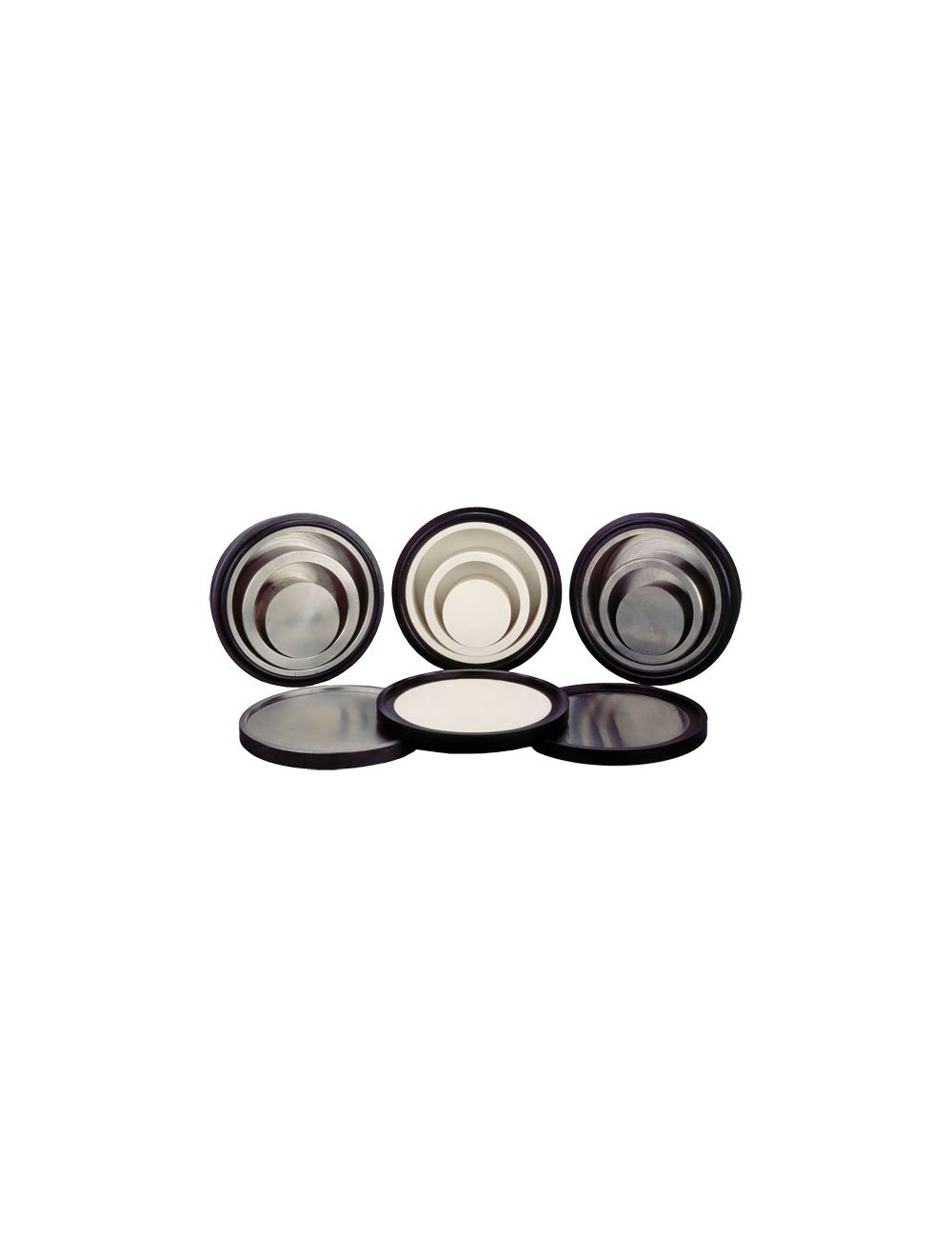

Hardened steel, tungsten carbide and zirconia comminution vessels are configured specifically to function with the GyralGrinder® clamping mechanism. The dishes incorporate an upper ridge for ease of handling and the lids have a central depression for self-alignment and fixation in position.

Features

Designed for GyralGrinder® Puck and Ring single hand-lever clamping mechanism

Integrated flange for handling ease

Matching material for puck, ring, lid liner and vessel bowl bottom

Different Materials

Hardened Steel

Tungsten Carbide

Zirconia Ceramic

Differnet Sizes

Single chamber

Triple chamber

$7,650.00
Availability: In stock
SKU
5080-WC

GyralGrinder® Puck and Ring Grinding Vessels are the grinding media used with the GyralGrinder® to energetically grind conventional to very hard samples to very fine powders in the least amount of time. A vessel consists of a bowl, lid with an “O” ring seal, solid dense puck and ring. The bowl integrates an upper flange for ease of handling and the lid has a central depression for self-alignment with the GyralGrinder® clamping mechanism with a self-locking and easy release mechanism integrated in the one hand operated knobbed lever.

All of the GyralGrinder® Puck and Ring Grinding Vessels and lids are fabricated from air craft grade aluminum for maximum strength with minimal weight. The grinding vessel and lid are lined with the desired material: Hardened Steel, Tungsten Carbide and Zirconia Ceramic. The pucks and rings are made from the same material as the liners. This methodology keeps the weight of the grinding vessels to a minumum while achieving desired hardness for the most consistent grinding.

More Information

Specifications

Dimensions, External

Diameter: 6.4" (16.3cm)

Height: 2.5" (6.4cm)

Dimensions, Internal: 1 Position

Diameter: 5.69" (14.5cm)

Height: 1.83" (4.6cm)

Volume: 16.78"3 (275cm3) (50% full)

Dimensions, Internal: 3 Position, each position

Diameter: 2.00" (5.8cm)

Height: 1.75" (4.5cm)

Volume: 2.45"3 (62cm3) (50% full)
