553: PlastiCup® Compressible Tapered Plastic Briquetting Cup, 34.5mm Dia. x 6.5mm Tall 500/pk
- Buy 12 for $160.00 each and save 3%
- Buy 24 for $155.00 each and save 6%
Transform powdered samples into firm durable solid briquettes protected on all sides except for the surface to be analyzed. Minimizes potential hazards of breakage, easy to handle and introduce into briquetting dies. Simply fill a PelletCups® briquetting cup with the powdered sample substance, place into die and briquette in usual manner.
• 13, 32, 35, 40 and 45mm diameters
• Close tolerances to die sets minimize sample spill over
• Taper reduces likelihood of stress and strain crack development
• Standard 32, 35 and 40mm diameters
• Lubricious plastic aids in Pellet release
Item Quantity Discount:
Order a unique item quantity of 12-23 packages of PelletCups® Pelletizing Cups, and receive $5.00 off the standard price per package.
Order a unique item quantity of 24 or more packages of PelletCups® Pelletizing Cups, and receive $10.00 off the standard price per package.
Transform powdered samples into firm durable solid pettlets protected on all sides except for the surface to be analyzed. Minimizes potential hazards of breakage, easy to handle and introduce into pellet die sets. Simply fill a PelletCups® Pelletizing cups with the powdered sample substance, place into die and make a pellet in usual manner.
Select from Tapered-Walled PelletCups® Pelletizing Cups in Aluminum or Plastic

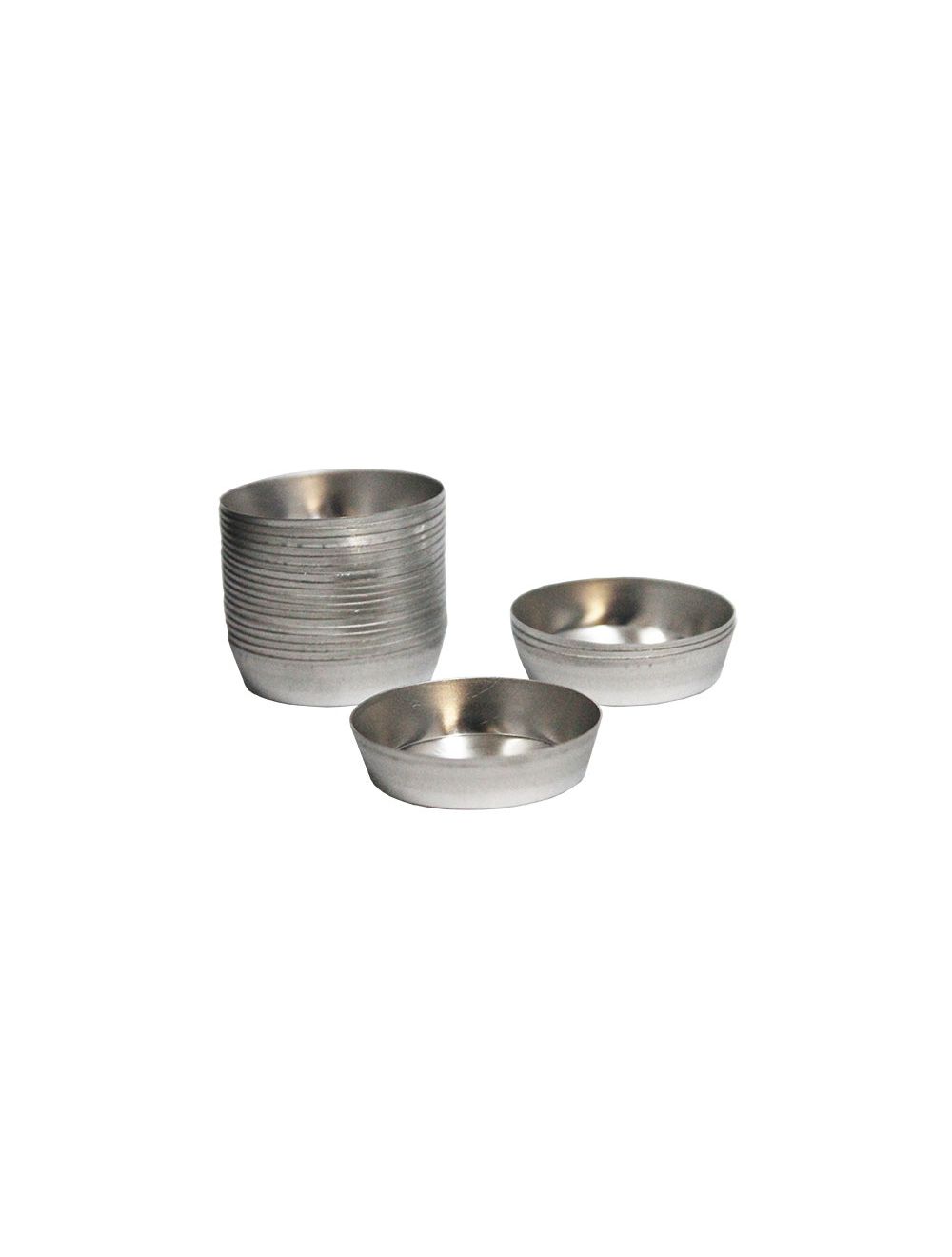

Tapered-Walled, Aluminum PelletCups® is a Chemplex innovation and represent the most popular and versatile devices for pelletizing a wide range of powdered samples under diversified pelletizing conditions. The tapered wall design tends to reduce cracking and fissure development. Very close outside diameter tolerance minimizes sample particles spilling over and becoming entrapped in between the inside walls of the die and PelletCups® Pelletizing cups outer diameters. Filled PelletCups® Pelletizing cups gently float down into the die set cavity on a cushion of entrapped air further reducing likelihood of spillage.
Tapered-Walled, PlastiCup® Pelletizing Cups are similar to their "ORIGINAL" aluminum counterparts except they are fabricated of a specialty plastic, shallower and accommodating less sample volume. Lubricious plastic quality helps extend die life by resistant-free pellet ejection.
Tapered-Walled, 13mm Aluminum PelletCups® Briquetting Cups are incorporated in the Chemplex® standard product line for use in conjunction with standard 13mm diameter pellet die sets. The main use of 13mm diameter samples is traditionally associated with IR analytical applications that heretofore require a backing agent such as boric acid, X-Ray Mix® or SpectroBlend® powders to provide mass to the sample substance. By completely encasing the sample material within the confines of the PelletCups®, the pelletized samples are substantially more resistant to damage through handling and conducive to preservation for future referral.
Note: For best results and close tolerances, use with Precision Fabricated Chemplex® Die Sets
® SpectroCertified, PelletCups, PlastiCup, X-Ray Mix, SpectroBlend and Chemplex are registered trademarks of Chemplex Industries, Inc.
IMPORTANT: Chemplex® manufactured pellet presses, XRF Pellet Die Sets and compressible PelletCups® Pelletizing Cups are designed for compatibility in relation to each other. Chemplex® assumes no responsibility for the incompatibility or performance of seemingly similar items used in conjunction with Chemplex® manufactured products and any damages.
The following table lists all of the Chemplex® PelletCups® and their manufacture tolerances.
