Powder Sample Compactor for XRF Pellet Press Die Sets

Variations in powdered sample densities frequently present difficulty in forming sturdy briquettes to a uniform standard thickness. Sample briquettes are generally wafer thin, delicate to handle and potentially subject to breakage during analysis. Although briquetting in aluminum PelletCups® adds physical support it can not compensate for the limited sample mass for thicker pellets. In response, Chemplex® offers a series of hand-held devices to maximally compact powdered samples in sample cups prior to final briquetting.

Features

Per-compact low density powdered samples

Minimizes build-up in Die Set

Form thicker, denser pellets

Avert wafer-thin sample briquettes

Variations in powdered sample densities frequently present difficulty in forming sturdy briquettes to a uniform standard thickness. Sample briquettes are generally wafer thin, delicate to handle and potentially subject to breakage during analysis. Although briquetting in aluminum PelletCups® adds physical support it can not compensate for the limited sample mass for thicker pellets. In response, Chemplex® offers a series of hand-held devices to maximally compact powdered samples in sample cups prior to final briquetting.

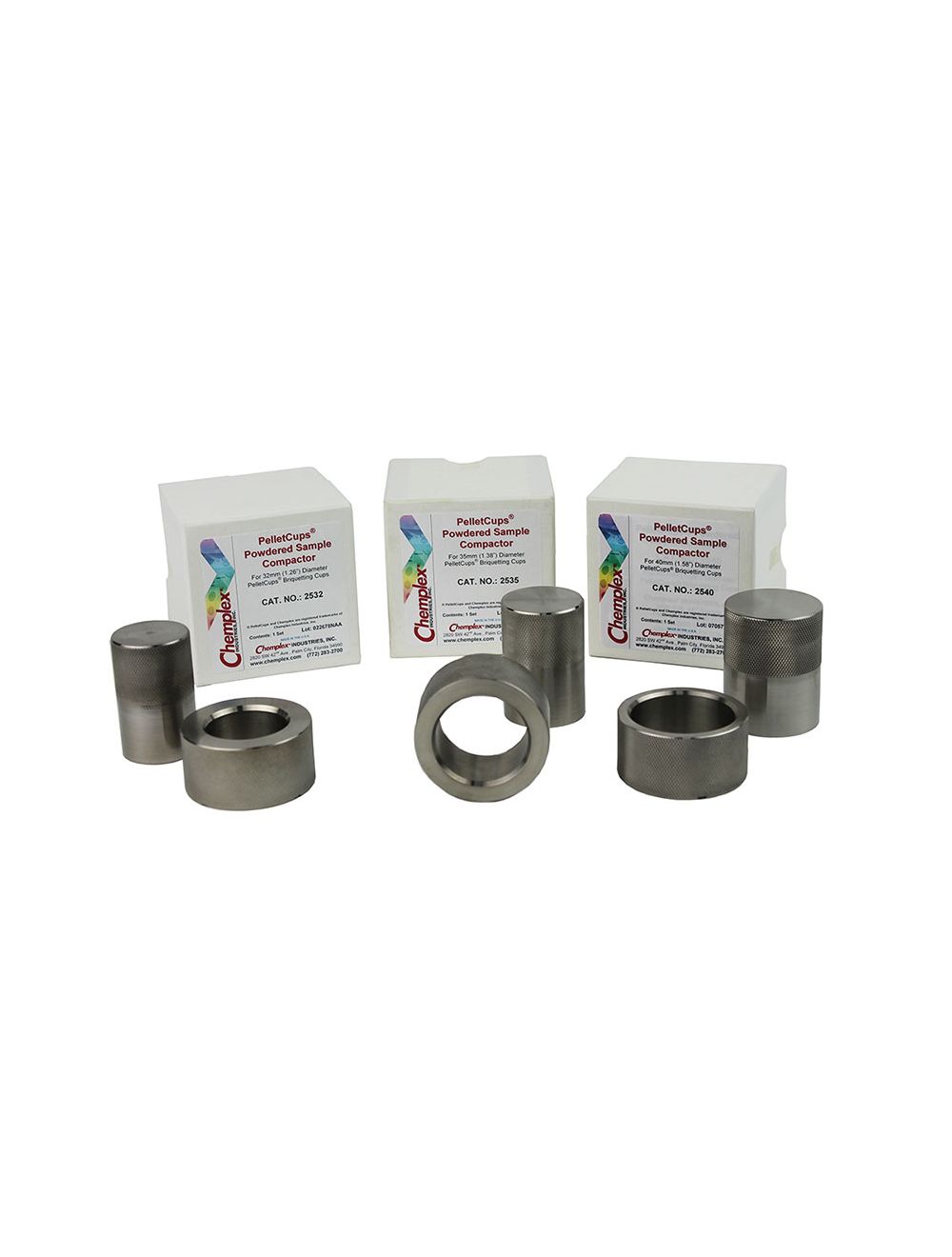

The PelletCups® Powdered Sample Compactors are self-aligning, self-centering hand-held devices that serve to tamp a powdered sample in a compressible aluminum tapered sample cup in progressive stages to ensure full compaction before final briquetting in a hydraulic press. Manufactured from quality stainless steel and precision honed to correspond to the dimensions and close tolerances of Chemplex® compressible aluminum tapered PelletCups® and annealed stainless steel die sets.

Available in 32, 35, 40 and 45mm diameters corresponding to Chemplex® compressible tapered aluminum PelletCups® briquetting cups.

® PelletCups and Chemplex are registered trademarks of Chemplex Industries, Inc.

More Information

Specifications

Die Pellet Diameter 0.51" (13mm)

Diameter: 1.00" (25.4mm)

Height: 2.00" (50.8mm)

Die Pellet Diameter 1.26" (32mm)

Diameter: 2.00" (50.8mm)

Height: 2.00" (50.8mm)

Die Pellet Diameter 1.38" (35mm)

Diameter: 2.00" (50.8mm)

Height: 2.00" (50.8mm)

Die Pellet Diameter 1.57" (40mm)

Diameter: 2.00" (50.8.4mm)

Height: 2.00" (50.8mm)

Die Pellet Diameter 1.77" (45mm)

Diameter: 2.25" (57.2mm)

Height: 2.00" (50.8mm)

Grouped product items
Cat. No. Diameter Qty/Pack Price Qty
2513
13mm (0.51")
1
$410
2532
32mm (1.26")
1
$410
2535
35mm (1.38")
1
$410
2540
40mm (1.57")
1
$410
2545
45mm (1.77")
1
$410
