7879-10-032-CL: Claisse Specific: Platinum and Gold (5%) Mold, 32mm

7879-10-032-CL: Claisse Specific: Platinum and Gold (5%) Mold, 32mm

7879-10-035-CL: Claisse Specific: Platinum and Gold (5%) Mold, 35mm

7879-10-035-CL: Claisse Specific: Platinum and Gold (5%) Mold, 35mm

7879-10-032-CL-REI : Claisse Specific: Platinum and Gold (5%) Mold, 32mm, Reinforced

$0.00
Availability: In stock
SKU
7879-10-032-CL-REI

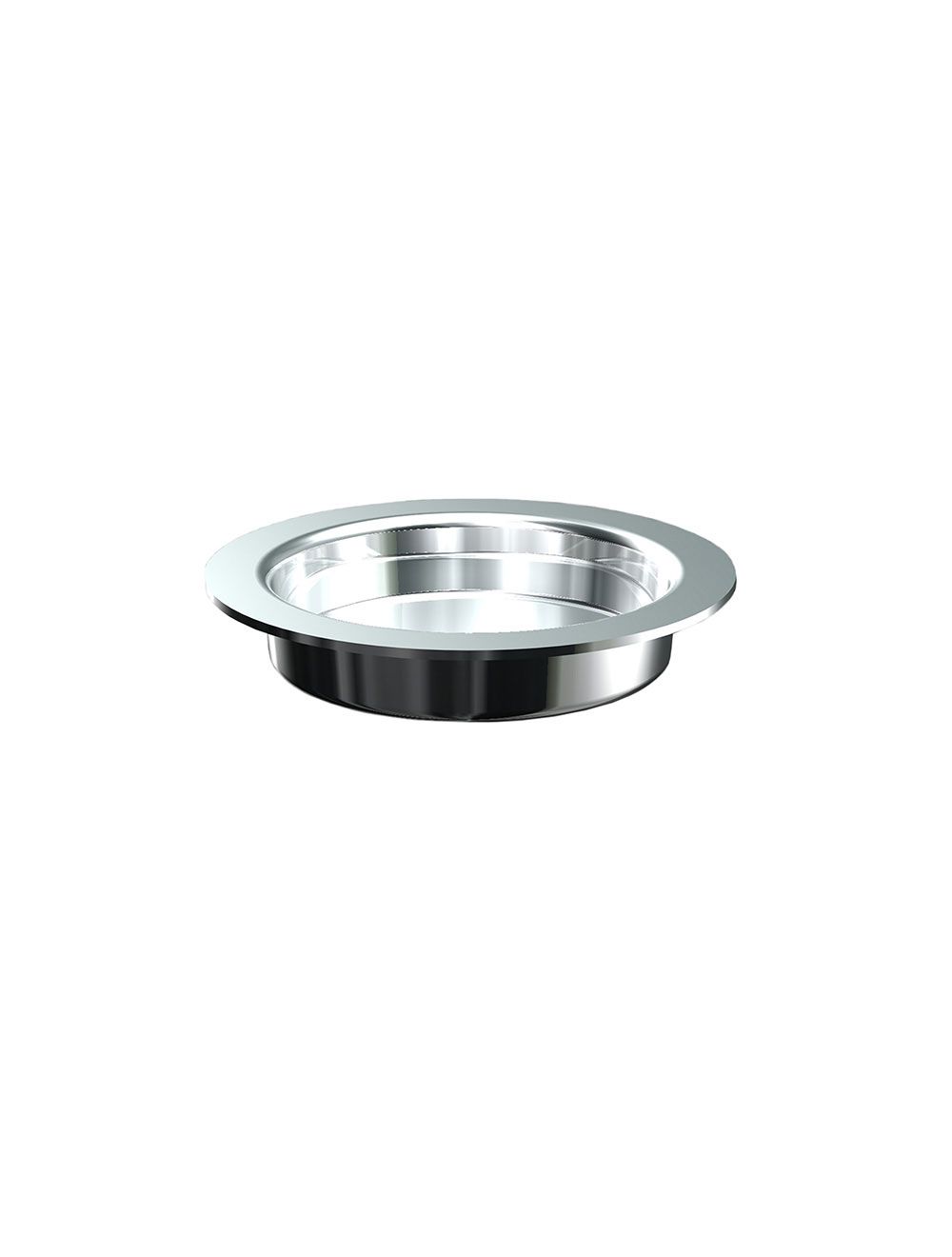

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Specific for Claisse Fusion machines

Precision Made

Variety of Mold sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® platinum crucibles and molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

Claisse Specific Molds

The following table lists some critical dimensions for the Claisse Specific Molds.

Please refer to the dimensional image for the Claisse Molds.

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Total Flange Diameter

(AD)

[mm]

Height

(H)

[mm]

Bottom

thickness

(s)

[mm]

Weight

[g]

Comments

CD01

32

30

39

6

0.8

21

Round version

CD02

32

30

39

6

1.0

27

Round version

CD03

34

32

41

6

0.8

23

Round version

CD04

34

32

41

6

1.0

29

Round version

CD05

37

35

44

6

0.8

26

Round version

CD06

37

35

44

6

1.0

33

Round version

CD07

40

38

48

6

0.8

34

Round version

CD08

40

38

48

6

1.0

43

Round version

CD09

42

40

49

6

0.8

35

Round version

CD10

42

40

49

6

1.0

43

Round version
