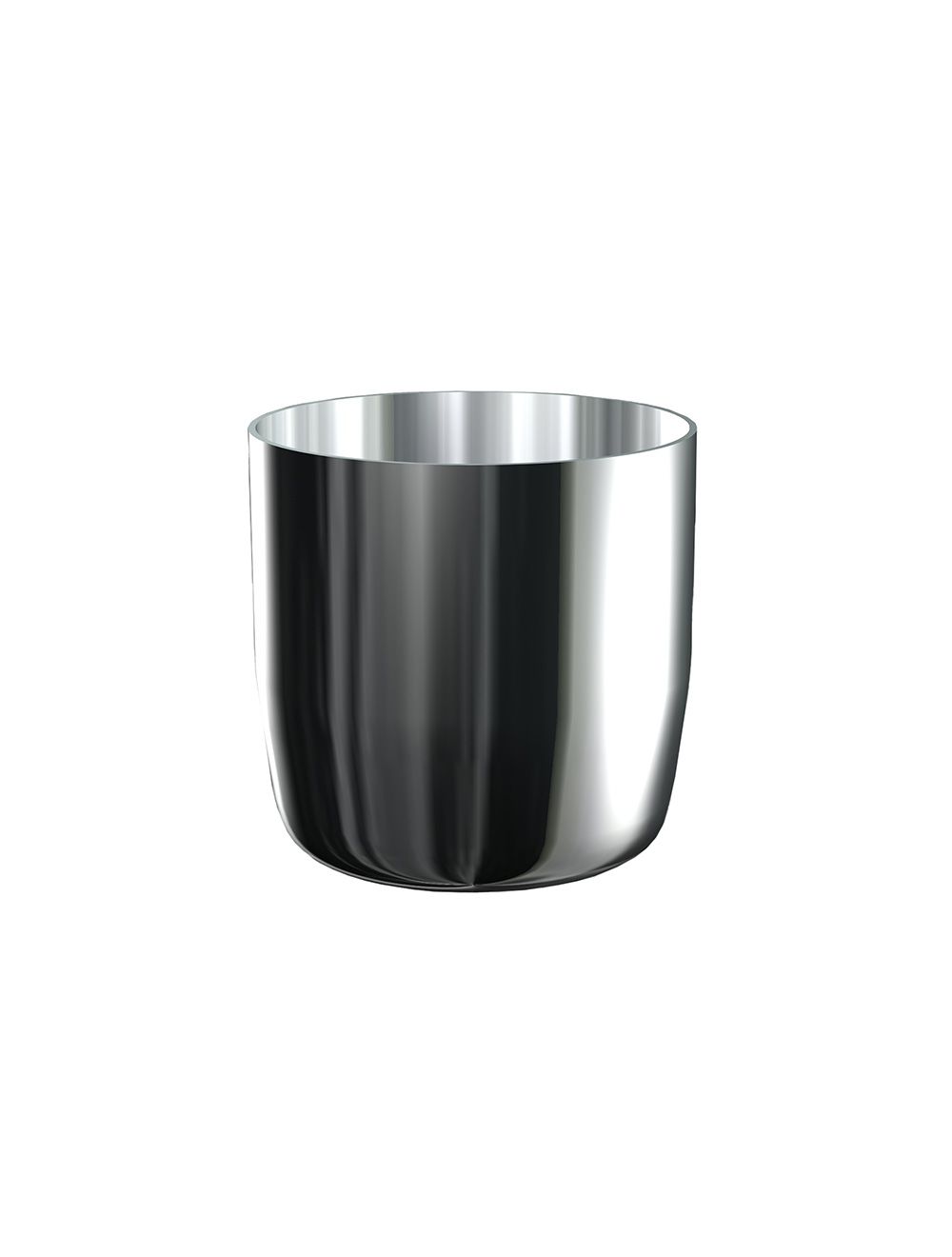

7879-09-028(1)-KA: Katanax Specific: Platinum and Gold (5%) Crucible, 28mm

7879-09-028(1)-KA: Katanax Specific: Platinum and Gold (5%) Crucible, 28mm

Platinum Ware: Katanax Specific

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Specific for Katanax Fusion machines

Precision Made

Variety of Crucibles

Variety of Mold sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® platinum crucibles and molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

Katanax specific Crucible

The following table lists some critical dimensions for the Katanax Specific Crucibles.

Please refer to the dimensional image for the Katanax Crucible.

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Height

(H)

[mm]

Bottom

Thickness

(s)

[mm]

Weight

[g]

Comments

KC01

39.7

28

31.7

0.38

26



KC02

39.7

28

31.7

0.38

28

Reinforced rim

KC03

39.7

28

31.7

0.40

30

Reinforced bottom



Katanax Specific Molds

The following table lists some critical dimensions for the Katanax Specific Molds.

Please refer to the dimensional image for the Katanax Molds.

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Total Flange Diameter

(AD)

[mm]

Height

(H)

[mm]

Bottom

Thickness

(s)

[mm]

Weight

[g]

Comments

KD01

32

30

39

6

0.8

21

Round version

KD02

32

30

39

6

1.0

27

Round version

KD03

34

32

41

6

0.8

23

Round version

KD04

34

32

41

6

1.0

29

Round version

KD05

37

35

44

6

0.8

26

Round version

KD06

37

35

44

6

1.0

33

Round version

KD07

40

38

48

6

0.8

34

Round version

KD08

40

38

48

6

1.0

43

Round version

KD09

42

40

49

6

0.8

35

Round version

KD10

42

40

49

6

1.0

43

Round version

Grouped product items
Cat No: Description Size Format Type Diameter Qty
7879-09-028(1)-KA Katanax Platinum and Gold (5%) Fusion Ware Crucible, 28mm KC01 Crucible Pt 95%/
Au 5%
1.10in
28.0mm
7879-09-028(2)-KA Katanax Platinum and Gold (5%) Fusion Ware Crucible, 28mm, Reinforced Rim KC02 Crucible Pt 95%/
Au 5%
1.10in
28.0mm
7879-09-028(3)-KA Katanax Platinum and Gold (5%) Fusion Ware Crucible, 28mm, Reinforced Bottom KC03 Crucible Pt 95%/
Au 5%
1.10in
28.0mm
7879-10-030-KA Katanax Platinum and Gold (5%) Mold, 30mm KD01 Mold Pt 95%/
Au 5%
1.18In
30.0mm
7879-10-030-KA-REI Katanax Platinum and Gold (5%) Mold, 30mm, Reinforced KD02 Mold Pt 95%/
Au 5%
1.18In
30.0mm
7879-10-032-KA Katanax Platinum and Gold (5%) Mold, 32mm KD03 Mold Pt 95%/
Au 5%
1.26in
32.0mm
7879-10-032-KA-REI Katanax Platinum and Gold (5%) Mold, 32mm, Reinforced KD04 Mold Pt 95%/
Au 5%
1.26in
32.0mm
7879-10-035-KA Katanax Platinum and Gold (5%) Mold, 35mm KD05 Mold Pt 95%/
Au 5%
1.38in
35.0mm
7879-10-035-KA-REI Katanax Platinum and Gold (5%) Mold, 35mm, Reinforced KD06 Mold Pt 95%/
Au 5%
1.38in
35.0mm
7879-10-038-KA Katanax Platinum and Gold (5%) Mold, 38mm KD07 Mold Pt 95%/
Au 5%
1.50in
38.0mm
7879-10-038-KA-REI Katanax Platinum and Gold (5%) Mold, 38mm, Reinforced KD08 Mold Pt 95%/
Au 5%
1.50in
38.0mm
7879-10-040-KA Katanax Platinum and Gold (5%) Mold, 40mm KD09 Mold Pt 95%/
Au 5%
1.57in
40.0mm
7879-10-040-KA-REI Katanax Platinum and Gold (5%) Mold, 40mm, Reinforced KD10 Mold Pt 95%/
Au 5%
1.57in
40.0mm
