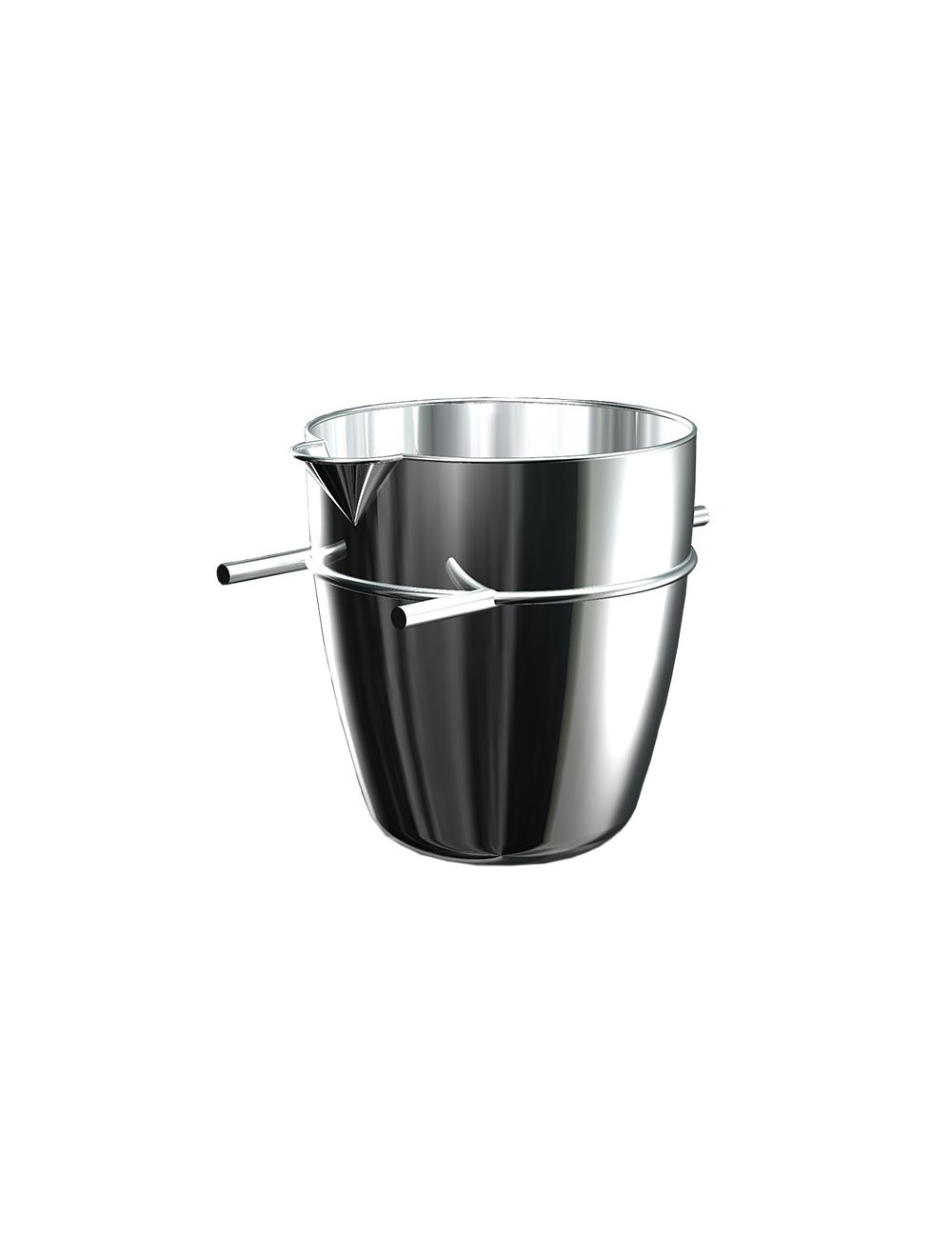

7879-09-020(1)-SC: Schoeps Specific: Platinum and Gold (5%) Crucible, 20mm, 3 Pins with Pouring Lip

7879-09-020(1)-SC: Schoeps Specific: Platinum and Gold (5%) Crucible, 20mm, 3 Pins with Pouring Lip

Platinum Ware: Schoeps Specific

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Specific for Schoeps Fusion machines

Precision Made

Variety of Crucibles

Variety of Mold sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® platinum crucibles and molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

Schoeps Specific Crucible

The following table lists some critical dimensions for the Schoeps Specific Crucibles.

Please refer to the dimensional image for the Schoeps Crucible

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Height

(H)

[mm]

Bottom

Thickness

(s)

[mm]

Weight

[g]

Comments

SCC01

34

20

38

0.34

25

3 pin with pouring lip

SCC02

34

20

38

0.50

43

3 pin on support ring with pouring lip

SCC03

34

20

38

0.50

44

3 pins on support ring with reinforced rim and pouring lip

SCC04

36

22

38

0.50

51

3 pins on support ring with reinforced rim and pouring lip



Schoeps Specific Molds

The following table lists some critical dimensions for the Schoeps Specific Casting Dishes.

Please refer to the dimensional image for the Schoeps Molds.

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Edge

Length

(B)

[mm]

Height

(H)

[mm]

Bottom

Thickness (s)

[mm]

Weight

[g]

Comments

SCD01

31

29

41

3

0.80

27

Square version

SCD02

31

29

41

3

1.00

34

Square version

SCD03

34

32

41

3

0.80

31

Square version

SCD04

34

32

41

3

1.00

38

Square version

SCD05

36

34

51

3

0.80

45

Square version

SCD06

36

34

51

3

1.00

58

Square version

SCD07

41

39

51

3

0.80

45

Square version

SCD08

41

39

51

3

1.00

58

Square version

Grouped product items
Cat No: Description Size Format Type Diameter Qty
7879-09-020(1)-SC Schoeps Platinum and Gold (5%) Fusion Ware Crucible, 20mm, 3 Pins with Pouring Lip SCC01 Crucible Pt 95%/
Au 5%
0.79in
20.0mm
7879-09-020(2)-SC Schoeps Platinum and Gold (5%) Fusion Ware Crucible, 20mm, 3 Pins on Support Ring with Pouring Lip SCC02 Crucible Pt 95%/
Au 5%
0.79in
20.0mm
7879-09-020(3)-SC Schoeps Platinum and Gold (5%) Fusion Ware Crucible, 20mm, 3 Pins on Support Ring with Reinforced Rin and Pouring Lip SCC03 Crucible Pt 95%/
Au 5%
0.79in
20.0mm
7879-09-022-SC Schoeps Platinum and Gold (5%) Fusion Ware Crucible, 22mm, 3 Pins on Support Ring with Reinforced Rin and Pouring Lip SCC04 Crucible Pt 95%/
Au 5%
0.87in
22.0mm
7879-10-029-SC Schoeps Platinum and Gold (5%) Mold, 29mm SCD01 Mold Pt 95%/
Au 5%
1.14in
29.0mm
7879-10-029-SC-REI Schoeps Platinum and Gold (5%) Mold, 29mm, Reinforced SCD02 Mold Pt 95%/
Au 5%
1.14in
29.0mm
7879-10-032-SC Schoeps Platinum and Gold (5%) Mold, 32mm SCD03 Mold Pt 95%/
Au 5%
1.26in
32.0mm
7879-10-032-SC-REI Schoeps Platinum and Gold (5%) Mold, 32mm, Reinforced SCD04 Mold Pt 95%/
Au 5%
1.26in
32.0mm
7879-10-034-SC Schoeps Platinum and Gold (5%) Mold, 34mm SCD05 Mold Pt 95%/
Au 5%
1.34in
34.0mm
7879-10-034-SC-REI Schoeps Platinum and Gold (5%) Mold, 34mm, Reinforced SCD06 Mold Pt 95%/
Au 5%
1.34in
34.0mm
7879-10-039-SC Schoeps Platinum and Gold (5%) Mold, 39mm SCD07 Mold Pt 95%/
Au 5%
1.54in
39.0mm
7879-10-039-SC-REI Schoeps Platinum and Gold (5%) Mold, 39mm, Reinforced SCD08 Mold Pt 95%/
Au 5%
1.54in
39.0mm
