7879-03-100S: Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, with Lid

7879-03-100S: Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, with Lid

7879-03-008W: Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, with Lid

7879-03-008W: Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, with Lid

7879-03-005W: Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml, with Lid

$0.00
Availability: In stock
SKU
7879-03-005W

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Precision Made

Variety of Crucible sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Options

Lid

Reinforced rin

re-shaper

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

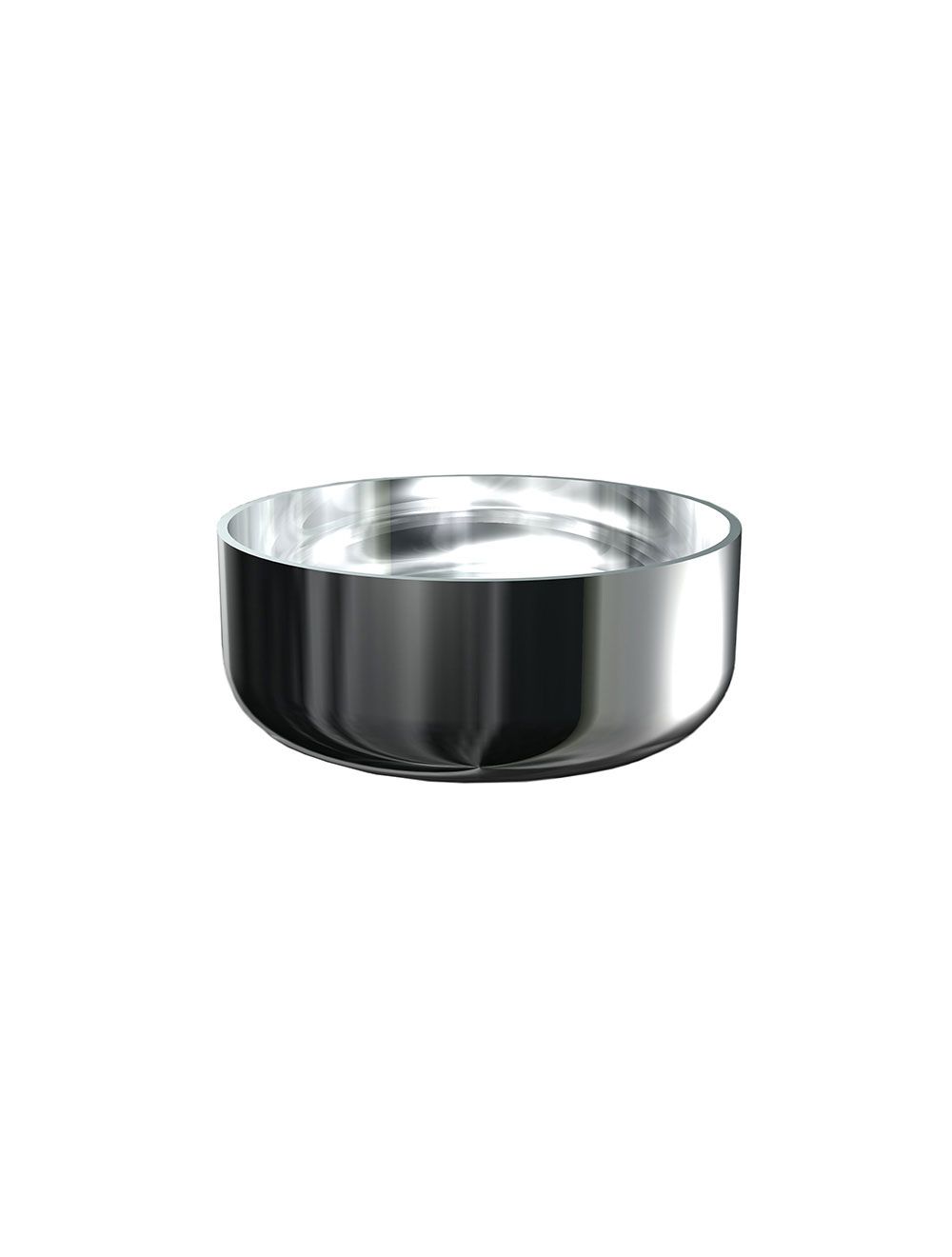

Wide Form Crucibles

The following table lists some critical dimensions for the Wide Form Crucibles.

Please refer to the dimensional image for the Wide Form Crucibles.

Size

Working

Capacity

[ml]

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Height

(H)

[mm]

Bottom

Thickness

(s)

[mm]

Weight

[g]

Weight

Reinforced

Rim

[g]

Lid

Diameter

(OD)

[mm]

Lid

Height

(H)

[mm]

Weight

with

Lid

[g]

Weight

Lid

Only

[g]

WC01

5

26

16

20

0.28

5

7

25

3.0 8 3

WC02

8

28

18

23

0.28

6

7

27

3.0 9 3

WC03

10

29

18

24

0.28

8

10

27

3.0 11 3

WC04

12

30

18

25

0.28

10

11

29

3.0 15 4

WC05

15

32

19

27

0.28

12

13

29

3.0 16 4

WC06

20

34

22

30

0.34

18

19

33

3.0 23 5

WC07

25

36

22

32

0.34

21

22

35

3.0 26 5

WC08

30

38

22

34

0.34

25

25

37

4.0 32 7

WC09

40

45

25

40

0.34

30

33

44

4.0 39 9

WC10

50

50

30

42

0.34

36

38

49

3.5 45 9

WC11

75

55

36

45

0.38

56

56

52

4.0 67 11

WC12

100

62

40

48

0.38

66

68

59

4.0 80 14
Yes
