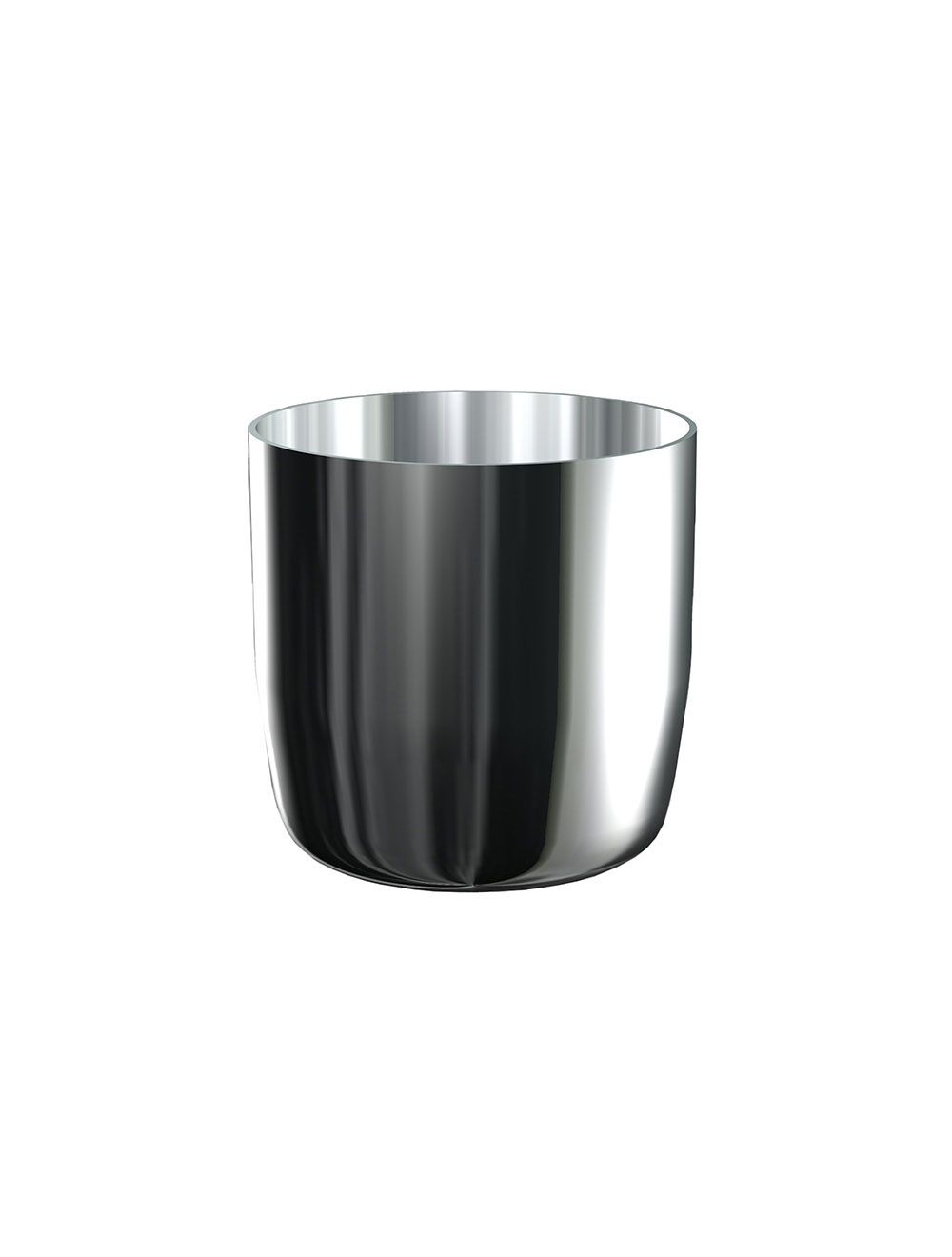

Platinum Ware: Standard Crucibles

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

• Precision Made

• Variety of Crucible sizes

• Various Alloys (most common)

• Platinum 100%

• Platinum 95%, Gold 5%

• Options

• Lid

• Reinforced rin

• re-shaper

• Serialized for asset tracking

• Platinum Replacement Exchange Program (PREP)

Details

Chemplex^® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex^® molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex^® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex^® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

The following table lists some critical dimensions for the Standard High Form Crucibles.

Please refer to the dimensional image for the High Form Crucibles.

Size	Working Capacity [ml]	Internal Top Diameter (OD) [mm]	Internal Bottom Diameter (UD) [mm]	Height (H) [mm]	Bottom Thickness (s) [mm]	Weight [g]	Weight Reinforced Rim [g]	Lid Diameter (OD) [mm]	Lid Height (H) [mm]	Weight with Lid [g]	Weight Lid Only [g]
SC01	5	19	12	25	0.28	5	7	18	2.0	7	2
SC02	8	22	13	27	0.28	6	7	21	3.0	8	2
SC03	10	24	14	28	0.28	8	9	23	3.0	11	3
SC04	12	26	16	29	0.28	10	11	25	3.0	13	3
SC05	15	28	17	33	0.28	12	13	27	3.0	15	3
SC06	20	30	18	35	0.34	18	19	29	3.0	22	4
SC07	25	34	20	38	0.34	21	22	33	3.0	26	5
SC08	30	36	22	40	0.34	25	27	35	3.0	30	5
SC09	40	40	25	45	0.34	30	32	39	3.5	37	7
SC10	50	45	27	48	0.34	36	38	44	4.0	45	9
SC11	75	53	32	56	0.38	56	58	52	4.0	67	11
SC12	100	56	35	60	0.38	66	68	55	3.0	78	12

Wide Form Crucibles

The following table lists some critical dimensions for the Wide Form Crucibles.

Please refer to the dimensional image for the Wide Form Crucibles.

Size	Working Capacity [ml]	Internal Top Diameter (OD) [mm]	Internal Bottom Diameter (UD) [mm]	Height (H) [mm]	Bottom Thickness (s) [mm]	Weight [g]	Weight Reinforced Rim [g]	Lid Diameter (OD) [mm]	Lid Height (H) [mm]	Weight with Lid [g]	Weight Lid Only [g]
WC01	5	26	16	20	0.28	5	7	25	3.0	8	3
WC02	8	28	18	23	0.28	6	7	27	3.0	9	3
WC03	10	29	18	24	0.28	8	10	27	3.0	11	3
WC04	12	30	18	25	0.28	10	11	29	3.0	15	4
WC05	15	32	19	27	0.28	12	13	29	3.0	16	4
WC06	20	34	22	30	0.34	18	19	33	3.0	23	5
WC07	25	36	22	32	0.34	21	22	35	3.0	26	5
WC08	30	38	22	34	0.34	25	25	37	4.0	32	7
WC09	40	45	25	40	0.34	30	33	44	4.0	39	9
WC10	50	50	30	42	0.34	36	38	49	3.5	45	9
WC11	75	55	36	45	0.38	56	56	52	4.0	67	11
WC12	100	62	40	48	0.38	66	68	59	4.0	80	14

Reviews

Grouped product items
Cat No:	Description	Size	Format	Type	Vol
7879-02-005S	Standard Crucibles, High Form: Platinum and Gold (5%), 5ml	SC01	Crucible, High Form	Pt 95%/ Au 5%	0.31in³ 5ml
7879-02-005W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml	WC01	Crucible, Wide Form	Pt 95%/ Au 5%	0.31in³ 5ml
7879-02-005S-REI	Standard Crucibles, High Form: Platinum and Gold (5%) 5ml, Reinforced Rim	SC01	Crucible, High Form	Pt 95%/ Au 5%	0.31in³ 5ml
7879-02-005W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml, Reinforced Rim	WC01	Crucible, Wide Form	Pt 95%/ Au 5%	0.31in³ 5ml
7879-03-005S	Standard Crucibles, High Form: Platinum and Gold (5%), 5ml, with Lid	SC01	Crucible, High Form & Lid	Pt 95%/ Au 5%	0.31in³ 5ml
7879-03-005W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml, with Lid	WC01	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	0.31in³ 5ml
7879-03(L)-005S	Standard Crucibles, High Form: Platinum and Gold (5%), 5ml, Lid Only	SC01	Lid, High Form	Pt 95%/ Au 5%	0.31in³ 5ml
7879-03(L)-005W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml, Lid Onlynly	WC01	Lid, Wide Form	Pt 95%/ Au 5%	0.31in³ 5ml
7879-04-005S	Standard Crucibles, High Form: Platinum and Gold (5%), 5ml, with Re-shaper	SC01	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.31in³ 5ml
7879-04-005W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml, with Re-shaper	WC01	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.31in³ 5ml
7879-04(R)-005S	Standard Crucibles, High Form: Platinum and Gold (5%), 5ml, Re-shaper Only	SC01	Re-shaper, High Form		0.31in³ 5ml
7879-04(R)-005W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 5ml, Re-shaper Only	WC01	Re-shaper, Wide Form		0.31in³ 5ml
7879-02-008S	Standard Crucibles, High Form: Platinum and Gold (5%), 8ml	SC02	Crucible, High Form	Pt 95%/ Au 5%	0.49in³ 8ml
7879-02-008W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml	WC02	Crucible, Wide Form	Pt 95%/ Au 5%	0.49in³ 8ml
7879-02-008S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 8ml, Reinforced Rim	SC02	Crucible, High Form	Pt 95%/ Au 5%	0.49in³ 8ml
7879-02-008W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, Reinforced Rim	WC02	Crucible, Wide Form	Pt 95%/ Au 5%	0.49in³ 8ml
7879-03-008S	Standard Crucibles, High Form: Platinum and Gold (5%), 8ml, with Lid	SC02	Crucible, High Form & Lid	Pt 95%/ Au 5%	0.49in³ 8ml
7879-03-008W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, with Lid	WC02	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	0.49in³ 8ml
7879-03(L)-008S	Standard Crucibles, High Form: Platinum and Gold (5%), 8ml, Lid Only	SC02	Lid, High Form	Pt 95%/ Au 5%	0.49in³ 8ml
7879-03(L)-008W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, Lid Only	WC02	Lid, Wide Form	Pt 95%/ Au 5%	0.49in³ 8ml
7879-04-008S	Standard Crucibles, High Form: Platinum and Gold (5%), 8ml, with Re-shaper	SC02	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.49in³ 8ml
7879-04-008W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, with Re-shaper	WC02	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.49in³ 8ml
7879-04(R)-008S	Standard Crucibles, High Form: Platinum and Gold (5%), 8ml, Re-shaper Only	SC02	Re-shaper, High Form		0.49in³ 8ml
7879-04(R)-008W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 8ml, Re-shaper Only	WC02	Re-shaper, Wide Form		0.49in³ 8ml
78-02-010S	Standard Crucibles, High Form: Platinum, 10ml	SC03	Crucible, High Form	Pt 100%	0.61in³ 10ml
7879-02-010S	Standard Crucibles, High Form: Platinum and Gold (5%), 10ml	SC03	Crucible, High Form	Pt 95%/ Au 5%	0.61in³ 10ml
7879-02-010W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 10ml	WC03	Crucible, Wide Form	Pt 95%/ Au 5%	0.61in³ 10ml
78-02-010S-REI	Standard Crucibles, High Form: Platinum, 10ml, Reinforced Rim	SC03	Crucible, High Form	Pt 100%	0.61in³ 10ml
7879-02-010S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 10ml, Reinforced Rim	SC03	Crucible, High Form	Pt 95%/ Au 5%	0.61in³ 10ml
7879-02-010W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 10ml, Reinforced Rim	WC03	Crucible, Wide Form	Pt 95%/ Au 5%	0.61in³ 10ml
7879-03-010S	Standard Crucibles, High Form: Platinum and Gold (5%), 10ml, with Lid	SC03	Crucible, High Form & Lid	Pt 95%/ Au 5%	0.61in³ 10ml
7879-03-010W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 10ml, with Lid	WC03	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	0.61in³ 10ml
7879-03(L)-010S	Standard Crucibles, High Form: Platinum and Gold (5%), 10ml, Lid Only	SC03	Lid, High Form	Pt 95%/ Au 5%	0.61in³ 10ml
7879-03(L)-010W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 10ml, Lid Only	WC03	Lid, Wide Form	Pt 95%/ Au 5%	0.61in³ 10ml
7879-04-010S	Standard Crucibles, High Form: Platinum and Gold (5%), 10ml, with Re-shaper	SC03	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.61in³ 10ml
7879-04-010W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 10ml, with Re-shaper	WC03	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.61in³ 10ml
7879-04(R)-010S	Standard Crucibles, High Form: Platinum and Gold (5%), 10ml, Re-shaper Only	SC03	Re-shaper, High Form		0.61in³ 10ml
7879-04(R)-010W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 10ml, Re-shaper Only	WC03	Re-shaper, Wide Form		0.61in³ 10ml
78-02-012S	Standard Crucibles, High Form: Platinum, 12ml	SC04	Crucible, High Form	Pt 100%	0.73in³ 12ml
7879-02-012S	Standard Crucibles, High Form: Platinum and Gold (5%), 12ml	SC04	Crucible, High Form	Pt 95%/ Au 5%	0.73in³ 12ml
7879-02-012W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 12ml	WC04	Crucible, Wide Form	Pt 95%/ Au 5%	0.73in³ 12ml
78-02-012S-REI	Standard Crucibles, High Form: Platinum, 12ml, Reinforced Rim	SC04	Crucible, High Form	Pt 100%	0.73in³ 12ml
7879-02-012S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 12ml, Reinforced Rim	SC04	Crucible, High Form	Pt 95%/ Au 5%	0.73in³ 12ml
7879-02-012W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 12ml, Reinforced Rim	WC04	Crucible, Wide Form	Pt 95%/ Au 5%	0.73in³ 12ml
7879-03-012S	Standard Crucibles, High Form: Platinum and Gold (5%), 12ml, with Lid	SC04	Crucible, High Form & Lid	Pt 95%/ Au 5%	0.73in³ 12ml
7879-03-012W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 12ml, with Lid	WC04	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	0.73in³ 12ml
78-03(L)-012S	Standard Crucibles, High Form: Platinum, 12ml, Lid Only	SC04	Lid, High Form	Pt 100%	0.73in³ 12ml
7879-03(L)-012S	Standard Crucibles, High Form: Platinum and Gold (5%), 12ml, Lid Only	SC04	Lid, High Form	Pt 95%/ Au 5%	0.73in³ 12ml
7879-03(L)-012W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 12ml, Lid Only	WC04	Lid, Wide Form	Pt 95%/ Au 5%	0.73in³ 12ml
7879-04-012S	Standard Crucibles, High Form: Platinum and Gold (5%), 12ml, with Re-shaper	SC04	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.73in³ 12ml
7879-04-012W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 12ml, with Re-shaper	WC04	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.73in³ 12ml
7879-04(R)-012S	Standard Crucibles, High Form: Platinum and Gold (5%), 12ml, Re-shaper Only	SC04	Re-shaper, High Form		0.73in³ 12ml
7879-04(R)-012W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 12ml, Re-shaper Only	WC04	Re-shaper, Wide Form		0.73in³ 12ml
78-02-015S	Standard Crucibles, High Form: Platinum, 15ml	SC05	Crucible, High Form	Pt 100%	0.92in³ 15ml
7879-02-015S	Standard Crucibles, High Form: Platinum and Gold (5%), 15ml	SC05	Crucible, High Form	Pt 95%/ Au 5%	0.92in³ 15ml
78-02-015W	Standard Crucibles, Wide Form: Platinum, 15ml	WC05	Crucible, Wide Form	Pt 100%	0.92in³ 15ml
7879-02-015W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 15ml	WC05	Crucible, Wide Form	Pt 95%/ Au 5%	0.92in³ 15ml
78-02-015S-REI	Standard Crucibles, High Form: Platinum, 15ml, Reinforced Rim	SC05	Crucible, High Form	Pt 100%	0.92in³ 15ml
7879-02-015S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 15ml, Reinforced Rim	SC05	Crucible, High Form	Pt 95%/ Au 5%	0.92in³ 15ml
7879-02-015W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 15ml, Reinforced Rim	WC05	Crucible, Wide Form	Pt 95%/ Au 5%	0.92in³ 15ml
78-03-015S	Standard Crucibles, High Form: Platinum, 15ml, with Lid	SC05	Crucible, High Form & Lid	Pt 100%	0.92in³ 15ml
7879-03-015S	Standard Crucibles, High Form: Platinum and Gold (5%), 15ml, with Lid	SC05	Crucible, High Form & Lid	Pt 95%/ Au 5%	0.92in³ 15ml
7879-03-015W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 15ml, with Lid	WC05	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	0.92in³ 15ml
78-03(L)-015S	Standard Crucibles, High Form: Platinum, 15ml, Lid Only	SC05	Lid, High Form	Pt 100%	0.92in³ 15ml
7879-03(L)-015S	Standard Crucibles, High Form: Platinum and Gold (5%), 15ml, Lid Only	SC05	Lid, High Form	Pt 95%/ Au 5%	0.92in³ 15ml
7879-03(L)-015W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 15ml, Lid Only	WC05	Lid, Wide Form	Pt 95%/ Au 5%	0.92in³ 15ml
7879-04-015S	Standard Crucibles, High Form: Platinum and Gold (5%), 15ml, with Re-shaper	SC05	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.92in³ 15ml
7879-04-015W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 15ml, with Re-shaperer	WC05	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	0.92in³ 15ml
7879-04(R)-015S	Standard Crucibles, High Form: Platinum and Gold (5%), 15ml, Re-shaper Only	SC05	Re-shaper, High Form		0.92in³ 15ml
7879-04(R)-015W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 15ml, Re-shaper Only	WC05	Re-shaper, Wide Form		0.92in³ 15ml
78-02-020S	Standard Crucibles, High Form: Platinum, 20ml	SC06	Crucible, High Form	Pt 100%	1.22in³ 20ml
7879-02-020S	Standard Crucibles, High Form: Platinum and Gold (5%), 20ml	SC06	Crucible, High Form	Pt 95%/ Au 5%	1.22in³ 20ml
7879-02-020W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 20ml	WC06	Crucible, Wide Form	Pt 95%/ Au 5%	1.22in³ 20ml
78-02-020S-REI	Standard Crucibles, High Form: Platinum, 20ml, Reinforced Rim	SC06	Crucible, High Form	Pt 100%	1.22in³ 20ml
7879-02-020S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 20ml, Reinforced Rim	SC06	Crucible, High Form	Pt 95%/ Au 5%	1.22in³ 20ml
7879-02-020W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 20ml, Reinforced Rim	WC06	Crucible, Wide Form	Pt 95%/ Au 5%	1.22in³ 20ml
78-03-020S	Standard Crucibles, High Form: Platinum, 20ml, with Lid	SC06	Crucible, High Form & Lid	Pt 100%	1.22in³ 20ml
7879-03-020S	Standard Crucibles, High Form: Platinum and Gold (5%), 20ml, with Lid	SC06	Crucible, High Form & Lid	Pt 95%/ Au 5%	1.22in³ 20ml
7879-03-020W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 20ml, with Lid	WC06	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	1.22in³ 20ml
78-03(L)-020S	Standard Crucibles, High Form: Platinum, 20ml, Lid Only	SC06	Lid, High Form	Pt 100%	1.22in³ 20ml
7879-03(L)-020S	Standard Crucibles, High Form: Platinum and Gold (5%), 20ml, Lid Only	SC06	Lid, High Form	Pt 95%/ Au 5%	1.22in³ 20ml
7879-03(L)-020W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 20ml, Lid Only	WC06	Lid, Wide Form	Pt 95%/ Au 5%	1.22in³ 20ml
7879-04-020S	Standard Crucibles, High Form: Platinum and Gold (5%), 20ml, with Re-shaper	SC06	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	1.22in³ 20ml
7879-04-020W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 20ml, with Re-shaper	WC06	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	1.22in³ 20ml
7879-04(R)-020S	Standard Crucibles, High Form: Platinum and Gold (5%), 20ml, Re-shaper Only	SC06	Re-shaper, High Form		1.22in³ 20ml
7879-04(R)-020W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 20ml, Re-shaper Only	WC06	Re-shaper, Wide Form		1.22in³ 20ml
78-02-025S	Standard Crucibles, High Form: Platinum, 25ml	SC07	Crucible, High Form	Pt 100%	1.53in³ 25ml
7879-02-025S	Standard Crucibles, High Form: Platinum and Gold (5%), 25ml	SC07	Crucible, High Form	Pt 95%/ Au 5%	1.53in³ 25ml
7879-02-025W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 25ml	WC07	Crucible, Wide Form	Pt 95%/ Au 5%	1.53in³ 25ml
78-02-025S-REI	Standard Crucibles, High Form: Platinum, 25ml, Reinforced Rim	SC07	Crucible, High Form	Pt 100%	1.53in³ 25ml
7879-02-025S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 25ml, Reinforced Rim	SC07	Crucible, High Form	Pt 95%/ Au 5%	1.53in³ 25ml
7879-02-025W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 25ml, Reinforced Rim	WC07	Crucible, Wide Form	Pt 95%/ Au 5%	1.53in³ 25ml
78-03-025S	Standard Crucibles, High Form: Platinum, 25ml, with Lid	SC07	Crucible, High Form & Lid	Pt 100%	1.53in³ 25ml
7879-03-025S	Standard Crucibles, High Form: Platinum and Gold (5%), 25ml, with Lid	SC07	Crucible, High Form & Lid	Pt 95%/ Au 5%	1.53in³ 25ml
7879-03-025W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 25ml, with Lid	WC07	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	1.53in³ 25ml
78-03(L)-025S	Standard Crucibles, High Form: Platinum, 25ml, Lid Only	SC07	Lid, High Form	Pt 100%	1.53in³ 25ml
7879-03(L)-025S	Standard Crucibles, High Form: Platinum and Gold (5%), 25ml, Lid Only	SC07	Lid, High Form	Pt 95%/ Au 5%	1.53in³ 25ml
7879-03(L)-025W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 25ml, Lid Only	WC07	Lid, Wide Form	Pt 95%/ Au 5%	1.53in³ 25ml
7879-04-025S	Standard Crucibles, High Form: Platinum and Gold (5%), 25ml, with Re-shaper	SC07	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	1.53in³ 25ml
7879-04-025W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 25ml, with Re-shaper	WC07	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	1.53in³ 25ml
7879-04(R)-025S	Standard Crucibles, High Form: Platinum and Gold (5%), 25ml, Re-shaper Only	SC07	Re-shaper, High Form		1.53in³ 25ml
7879-04(R)-025W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 25ml, Re-shaper Only	WC07	Re-shaper, Wide Form		1.53in³ 25ml
78-02-030S	Standard Crucibles, High Form: Platinum, 30ml	SC08	Crucible, High Form	Pt 100%	1.83in³ 30ml
7879-02-030S	Standard Crucibles, High Form: Platinum and Gold (5%), 30ml	SC08	Crucible, High Form	Pt 95%/ Au 5%	1.83in³ 30ml
7879-02-030W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 30ml	WC08	Crucible, Wide Form	Pt 95%/ Au 5%	1.83in³ 30ml
78-02-030S-REI	Standard Crucibles, High Form: Platinum, 30ml, Reinforced Rim	SC08	Crucible, High Form	Pt 100%	1.83in³ 30ml
7879-02-030S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 30ml, Reinforced Rim	SC08	Crucible, High Form	Pt 95%/ Au 5%	1.83in³ 30ml
7879-02-030W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 30ml, Reinforced Rim	WC08	Crucible, Wide Form	Pt 95%/ Au 5%	1.83in³ 30ml
78-03-030S	Standard Crucibles, High Form: Platinum, 30ml, with Lid	SC08	Crucible, High Form & Lid	Pt 100%	1.83in³ 30ml
7879-03-030S	Standard Crucibles, High Form: Platinum and Gold (5%), 30ml, with Lid	SC08	Crucible, High Form & Lid	Pt 95%/ Au 5%	1.83in³ 30ml
7879-03-030W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 30ml, with Lid	WC08	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	1.83in³ 30ml
78-03(L)-030S	Standard Crucibles, High Form: Platinum, 30ml, Lid Only	SC08	Lid, High Form	Pt 100%	1.83in³ 30ml
7879-03(L)-030S	Standard Crucibles, High Form: Platinum and Gold (5%), 30ml, Lid Only	SC08	Lid, High Form	Pt 95%/ Au 5%	1.83in³ 30ml
7879-03(L)-030W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 30ml, Lid Only	WC08	Lid, Wide Form	Pt 95%/ Au 5%	1.83in³ 30ml
7879-04-030S	Standard Crucibles, High Form: Platinum and Gold (5%), 30ml, with Re-shaper	SC08	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	1.83in³ 30ml
7879-04-030W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 30ml, with Re-shaper	WC08	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	1.83in³ 30ml
7879-04(R)-030S	Standard Crucibles, High Form: Platinum and Gold (5%), 30ml, Re-shaper Only	SC08	Re-shaper, High Form		1.83in³ 30ml
7879-04(R)-030W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 30ml, Re-shaper Only	WC08	Re-shaper, Wide Form		1.83in³ 30ml
78-02-040S	Standard Crucibles, High Form: Platinum, 40ml	SC09	Crucible, High Form	Pt 100%	2.44in³ 40ml
7879-02-040S	Standard Crucibles, High Form: Platinum and Gold (5%), 40ml	SC09	Crucible, High Form	Pt 95%/ Au 5%	2.44in³ 40ml
7879-02-040W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 40ml	WC09	Crucible, Wide Form	Pt 95%/ Au 5%	2.44in³ 40ml
78-02-040S-REI	Standard Crucibles, High Form: Platinum, 40ml, Reinforced Rim	SC09	Crucible, High Form	Pt 100%	2.44in³ 40ml
7879-02-040S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 40ml, Reinforced Rim	SC09	Crucible, High Form	Pt 95%/ Au 5%	2.44in³ 40ml
7879-02-040W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 40ml, Reinforced Rim	WC09	Crucible, Wide Form	Pt 95%/ Au 5%	2.44in³ 40ml
78-03-040S	Standard Crucibles, High Form: Platinum, 40ml, with Lid	SC09	Crucible, High Form & Lid	Pt 100%	2.44in³ 40ml
7879-03-040S	Standard Crucibles, High Form: Platinum and Gold (5%), 40ml, with Lid	SC09	Crucible, High Form & Lid	Pt 95%/ Au 5%	2.44in³ 40ml
7879-03-040W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 40ml, with Lid	WC09	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	2.44in³ 40ml
78-03(L)-040S	Standard Crucibles, High Form: Platinum, 40ml, Lid Only	SC09	Lid, High Form	Pt 100%	2.44in³ 40ml
7879-03(L)-040S	Standard Crucibles, High Form: Platinum and Gold (5%), 40ml, Lid Only	SC09	Lid, High Form	Pt 95%/ Au 5%	2.44in³ 40ml
7879-03(L)-040W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 40ml, Lid Only	WC09	Lid, Wide Form	Pt 95%/ Au 5%	2.44in³ 40ml
7879-04-040S	Standard Crucibles, High Form: Platinum and Gold (5%), 40ml, with Re-shaper	SC09	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	2.44in³ 40ml
7879-04-040W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 40ml, with Re-shaper	WC09	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	2.44in³ 40ml
7879-04(R)-040S	Standard Crucibles, High Form: Platinum and Gold (5%), 40ml, Re-shaper Only	SC09	Re-shaper, High Form		2.44in³ 40ml
7879-04(R)-040W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 40ml, Re-shaper Only	WC09	Re-shaper, Wide Form		2.44in³ 40ml
78-02-050S	Standard Crucibles, High Form: Platinum, 50ml	SC10	Crucible, High Form	Pt 100%	3.05in³ 50ml
7879-02-050S	Standard Crucibles, High Form: Platinum and Gold (5%), 50ml	SC10	Crucible, High Form	Pt 95%/ Au 5%	3.05in³ 50ml
7879-02-050W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 50ml	WC10	Crucible, Wide Form	Pt 95%/ Au 5%	3.05in³ 50ml
78-02-050S-REI	Standard Crucibles, High Form: Platinum, 50ml, Reinforced Rim	SC10	Crucible, High Form	Pt 100%	3.05in³ 50ml
7879-02-050S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 50ml, Reinforced Rim	SC10	Crucible, High Form	Pt 95%/ Au 5%	3.05in³ 50ml
7879-02-050W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 50ml, Reinforced Rim	WC10	Crucible, Wide Form	Pt 95%/ Au 5%	3.05in³ 50ml
78-03-050S	Standard Crucibles, High Form: Platinum, 50ml, with Lid	SC10	Crucible, High Form & Lid	Pt 100%	3.05in³ 50ml
7879-03-050S	Standard Crucibles, High Form: Platinum and Gold (5%), 50ml, with Lid	SC10	Crucible, High Form & Lid	Pt 95%/ Au 5%	3.05in³ 50ml
7879-03-050W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 50ml, with Lid	WC10	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	3.05in³ 50ml
78-03(L)-050S	Standard Crucibles, High Form: Platinum, 50ml, Lid Only	SC10	Lid, High Form	Pt 100%	3.05in³ 50ml
7879-03(L)-050S	Standard Crucibles, High Form: Platinum and Gold (5%), 50ml, Lid Only	SC10	Lid, High Form	Pt 95%/ Au 5%	3.05in³ 50ml
7879-03(L)-050W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 50ml, Lid Only	WC10	Lid, Wide Form	Pt 95%/ Au 5%	3.05in³ 50ml
7879-04-050S	Standard Crucibles, High Form: Platinum and Gold (5%), 50ml, with Re-shaper	SC10	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	3.05in³ 50ml
7879-04-050W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 50ml, with Re-shaper	WC10	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	3.05in³ 50ml
7879-04(R)-050S	Standard Crucibles, High Form: Platinum and Gold (5%), 50ml, Re-shaper Only	SC10	Re-shaper, High Form		3.05in³ 50ml
7879-04(R)-050W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 50ml, Re-shaper Only	WC10	Re-shaper, Wide Form		3.05in³ 50ml
78-02-075S	Standard Crucibles, High Form: Platinum, 75ml	SC11	Crucible, High Form	Pt 100%	4.58in³ 75ml
7879-02-075S	Standard Crucibles, High Form: Platinum and Gold (5%), 75ml	SC11	Crucible, High Form	Pt 95%/ Au 5%	4.58in³ 75ml
7879-02-075W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 75ml	WC11	Crucible, Wide Form	Pt 95%/ Au 5%	4.58in³ 75ml
78-02-075S-REI	Standard Crucibles, High Form: Platinum, 75ml, Reinforced Rim	SC11	Crucible, High Form	Pt 100%	4.58in³ 75ml
7879-02-075S-REI	Standard High Form Platinum and Gold (5%) Fusion Ware Crucible, 75ml, Reinforced Rim	SC11	Crucible, High Form	Pt 95%/ Au 5%	4.58in³ 75ml
7879-02-075W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 75ml, Reinforced Rim	WC11	Crucible, Wide Form	Pt 95%/ Au 5%	4.58in³ 75ml
78-03-075S	Standard Crucibles, High Form: Platinum, 75ml, with Lid	SC11	Crucible, High Form & Lid	Pt 100%	4.58in³ 75ml
7879-03-075S	Standard Crucibles, High Form: Platinum and Gold (5%), 75ml, with Lid	SC11	Crucible, High Form & Lid	Pt 95%/ Au 5%	4.58in³ 75ml
7879-03-075W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 75ml, with Lid	WC11	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	4.58in³ 75ml
78-03(L)-075S	Standard Crucibles, High Form: Platinum, 75ml, Lid Only	SC11	Lid, High Form	Pt 100%	4.58in³ 75ml
7879-03(L)-075S	Standard Crucibles, High Form: Platinum and Gold (5%), 75ml, Lid Only	SC11	Lid, High Form	Pt 95%/ Au 5%	4.58in³ 75ml
7879-03(L)-075W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 75ml, Lid Only	WC11	Lid, Wide Form	Pt 95%/ Au 5%	4.58in³ 75ml
7879-04-075S	Standard Crucibles, High Form: Platinum and Gold (5%), 75ml, with Re-shaper	SC11	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	4.58in³ 75ml
7879-04-075W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 75ml, with Re-shaper	WC11	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	4.58in³ 75ml
7879-04(R)-075S	Standard Crucibles, High Form: Platinum and Gold (5%), 75ml, Re-shaper Only	SC11	Re-shaper, High Form		4.58in³ 75ml
7879-04(R)-075W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 75ml, Re-shaper Only	WC11	Re-shaper, Wide Form		4.58in³ 75ml
78-02-100S	Standard Crucibles, High Form: Platinum, 100ml	SC12	Crucible, High Form	Pt 100%	6.10in³ 100ml
7879-02-100S	Standard Crucibles, High Form: Platinum and Gold (5%), 100ml	SC12	Crucible, High Form	Pt 95%/ Au 5%	6.10in³ 100ml
7879-02-100W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 100ml	WC12	Crucible, Wide Form	Pt 95%/ Au 5%	6.10in³ 100ml
78-02-100S-REI	Standard Crucibles, High Form: Platinum, 100ml, Reinforced Rim	SC12	Crucible, High Form	Pt 100%	6.10in³ 100ml
7879-02-100S-REI	Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, Reinforced Rim	SC12	Crucible, High Form	Pt 95%/ Au 5%	6.10in³ 100ml
7879-02-100W-REI	Standard Crucibles, Wide Form: Platinum and Gold (5%), 100ml, Reinforced Rim	WC12	Crucible, Wide Form	Pt 95%/ Au 5%	6.10in³ 100ml
78-03-100S	Standard Crucibles, High Form: Platinum, 100ml, with Lid	SC12	Crucible, High Form & Lid	Pt 100%	6.10in³ 100ml
7879-03-100S	Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, with Lid	SC12	Crucible, High Form & Lid	Pt 95%/ Au 5%	6.10in³ 100ml
7879-03-100W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 100ml, with Lid	WC12	Crucible, Wide Form & Lid	Pt 95%/ Au 5%	6.10in³ 100ml
78-03(L)-100S	Standard Crucibles, High Form: Platinum, 100ml, Lid Only	SC12	Lid, High Form	Pt 100%	6.10in³ 100ml
7879-03(L)-100S	Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, Lid Only	SC12	Lid, High Form	Pt 95%/ Au 5%	6.10in³ 100ml
7879-03(L)-100W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 100ml, Lid Only	WC12	Lid, Wide Form	Pt 95%/ Au 5%	6.10in³ 100ml
7879-04-100S	Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, with Re-shaper	SC12	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	6.10in³ 100ml
7879-04-100W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 100ml, with Re-shaper	WC12	Crucible, Wide Form & Re-shaper	Pt 95%/ Au 5%	6.10in³ 100ml
7879-04(R)-100S	Standard Crucibles, High Form: Platinum and Gold (5%), 100ml, Re-shaper Only	SC12	Re-shaper, High Form		6.10in³ 100ml
7879-04(R)-100W	Standard Crucibles, Wide Form: Platinum and Gold (5%), 100ml, Re-shaper Only	WC12	Re-shaper, Wide Form		6.10in³ 100ml
