7879-05-020S: Standard Molds: Platinum and Gold (5%), 20ml

7879-05-020S: Standard Molds: Platinum and Gold (5%), 20ml

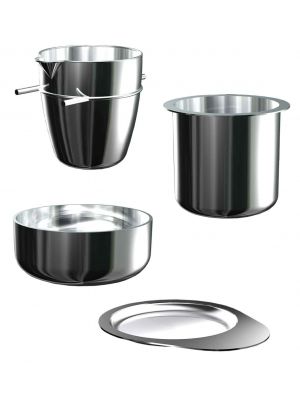

Platinum Ware: Standard Molds

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Precision Made

Variety of Mold sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Options

Lid

Reinforced rin

Pouring Spout

re-shaper

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

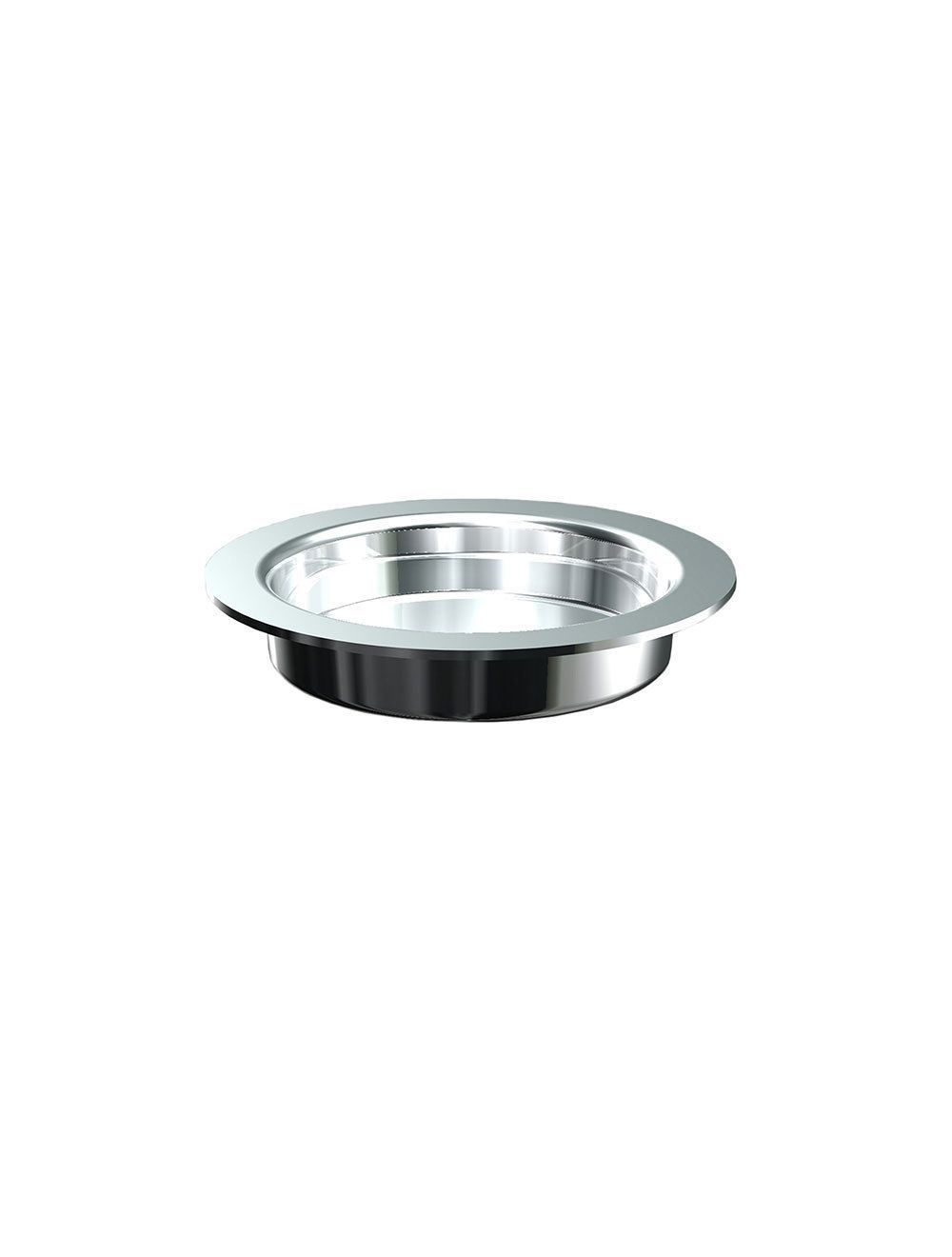

Standard Form Standard Molds

The following table lists some critical dimensions for the Standard Form Molds.

Please refer to the dimensional image for the Standard Molds.

Size

Working

Capacity

[ml]

Φ

Inside

[mm]

Height

(H)

[mm]

Bottom

Thickness

(s)

[mm]

Weight

[g]

Weight

Reinforced Rim

[g]

Lid

Diameter

(OD)

[mm]

Lid

Height

(H)

[mm]

Weight

with

Lid

[g]

Weight

Lid

Only

[g]

SD01

20

40

20

0.15

8

9

39

3.5 15 7

SD02

40

50

25

0.15

13

15

49

3.5 22 9

SD03

60

60

30

0.15

20

22

59

4.0 34 14

SD04

80

65

33

0.15

25

27

64

4.5 40 15

SD05

100

70

35

0.20

36

40

69

5.0 54 18

SD06

130

75

38

0.20

40

43

74

5.0 60 20

SD07

150

80

40

0.20

48

52

79

6.0 72 24

SD08

200

90

45

0.20

60

64

89

7.0 91 31

SD09

300

100

50

0.26

90

94

99

8.0 128 38

SD10

400

110

55

0.26

113

118

109

9.0 161 48

SD11

500

120

60

0.26

130

135

119

10.0 188 58

SD12

600

130

65

0.26

157

163

129

12.0 223 66

No
Write Your Own Review
You're reviewing:Platinum Ware: Standard Molds
Your Rating
Grouped product items
Vol Type Format Cat. No. Description Size Qty
1.22in3
20ml
Pt 95%/
Au 5%
Mold
7879-05-020S
Standard Molds: Platinum and Gold (5%), 20ml
SD01
1.22in3
20ml
Pt 95%/
Au 5%
Mold
7879-05-020S-REI
Standard Molds: Platinum and Gold (5%), 20ml, Reinforced Rim
SD01
1.22in3
20ml
Pt 100%
Mold &
Lid
78-06-020S
Standard Molds: Platinum, 20ml with Lid
SD01
1.22in3
20ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-020S
Standard Molds: Platinum and Gold (5%), 20ml, with Lid
SD01
1.22in3
20ml
Pt 95%/
Au 5%
Lid
7879-06(L)-020S
Standard Molds: Platinum and Gold (5%), 20ml, Lid Only
SD01
1.22in3
20ml
Pt 100%
Mold &
Re-Shaper
78-07-020S
Standard Molds: Platinum, 20ml with Re-shaper
SD01
1.22in3
20ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-020S
Standard Molds: Platinum and Gold (5%), 20ml with Re-shaper
SD01
1.22in3
20ml
Re-shaper
7879-07(R)-020S
Standard Molds: Platinum and Gold (5%), 20ml, Re-shaper Only
SD01
1.22in3
20ml
Pt 100%
Mold
78-08-020S
Standard Molds: Platinum, 20ml with Pouring Spout
SD01
1.22in3
20ml
Pt 95%/
Au 5%
Mold
7879-08-020S
Standard Molds: Platinum and Gold (5%), 20ml, with Pouring Spout
SD01
2.44in3
40ml
Pt 95%/
Au 5%
Mold
7879-05-040S
Standard Molds: Platinum and Gold (5%), 40ml
SD02
2.44in3
40ml
Pt 95%/
Au 5%
Mold
7879-05-040S-REI
Standard Molds: Platinum and Gold (5%), 40ml, Reinforced Rim
SD02
2.44in3
40ml
Pt 100%
Mold &
Lid
78-06-040S
Standard Molds: Platinum, 40ml with Lid
SD02
2.44in3
40ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-040S
Standard Molds: Platinum and Gold (5%), 40ml with Lid
SD02
2.44in3
40ml
Pt 95%/
Au 5%
Lid
7879-06(L)-040S
Standard Molds: Platinum and Gold (5%), 40ml, Lid Only
SD02
2.44in3
40ml
Pt 100%
Mold &
Re-Shaper
78-07-040S
Standard Molds: Platinum, 40ml with Re-shaper
SD02
2.44in3
40ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-040S
Standard Molds: Platinum and Gold (5%), 40ml with Re-shaper
SD02
2.44in3
40ml
Re-shaper
7879-07(R)-040S
Standard Molds: Platinum and Gold (5%), 40ml, Re-shaper Only
SD02
2.44in3
40ml
Pt 100%
Mold
78-08-040S
Standard Molds: Platinum, 40ml with Pouring Spout
SD02
2.44in3
40ml
Pt 95%/
Au 5%
Mold
7879-08-040S
Standard Molds: Platinum and Gold (5%) , 40ml with Pouring Spout
SD02
3.66in3
60ml
Pt 95%/
Au 5%
Mold
7879-05-060S
Standard Molds: Platinum and Gold (5%), 60ml
SD03
3.66in3
60ml
Pt 95%/
Au 5%
Mold
7879-05-060S-REI
Standard Molds: Platinum and Gold (5%), 60ml with Reinforced Rim
SD03
3.66in3
60ml
Pt 100%
Mold &
Lid
78-06-060S
Standard Molds: Platinum, 60ml with Lid
SD03
3.66in3
60ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-060S
Standard Molds: Platinum and Gold (5%), 60ml, with Lid
SD03
3.66in3
60ml
Pt 95%/
Au 5%
Lid
7879-06(L)-060S
Standard Molds: Platinum and Gold (5%), 60ml, Lid Only
SD03
3.66in3
60ml
Pt 100%
Mold &
Re-Shape
78-07-060S
Standard Molds: Platinum, 60ml with Re-shaper
SD03
3.66in3
60ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-060S
Standard Molds: Platinum and Gold (5%), 60ml, with Re-shaper
SD03
3.66in3
60ml
Re-shaper
7879-07(R)-060S
Standard Molds: Platinum and Gold (5%), 60ml, Re-shaper Only
SD03
4.88in3
80ml
Pt 100%
Mold &
Re-Shaper
78-07-080S
Standard Molds: Platinum, 80ml with Re-shaper
SD04
3.66in3
60ml
Pt 100%
Mold
78-08-060S
Standard Molds: Platinum, 60ml with Pouring Spout
SD03
3.66in3
60ml
Pt 95%/
Au 5%
Mold
7879-08-060S
Standard Molds: Platinum and Gold (5%), 60ml with Pouring Spout
SD03
4.88in3
80ml
Pt 95%/
Au 5%
Mold
7879-05-080S
Standard Molds: Platinum and Gold (5%), 80ml
SD04
4.88in3
80ml
Pt 95%/
Au 5%
Mold
7879-05-080S-REI
Standard Molds: Platinum and Gold (5%), 80ml, Reinforced Rim
SD04
4.88in3
80ml
Pt 100%
Mold &
Lid
78-06-080S
Standard Molds: Platinum, 80ml with Lid
SD04
4.88in3
80ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-080S
Standard Molds: Platinum and Gold (5%), 80ml with Lid
SD04
4.88in3
80ml
Pt 95%/
Au 5%
Lid
7879-06(L)-080S
Standard Molds: Platinum and Gold (5%), 80ml, Lid Only
SD04
4.88in3
80ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-080S
Standard Molds: Platinum and Gold (5%), 80ml with Re-shaper
SD04
4.88in3
80ml
Re-shaper
7879-07(R)-080S
Standard Molds: Platinum and Gold (5%), 80ml, Re-shaper Only
SD04
4.88in3
80ml
Pt 100%
Mold
78-08-080S
Standard Molds: Platinum, 80ml with Pouring Spout
SD04
4.88in3
80ml
Pt 95%/
Au 5%
Mold
7879-08-080S
Standard Molds: Platinum and Gold (5%), 80ml with Pouring Spout
SD04
6.10in3
100ml
Pt 95%/
Au 5%
Mold
7879-05-100S
Standard Molds: Platinum and Gold (5%), 100ml
SD05
6.10in3
100ml
Pt 95%/
Au 5%
Mold
7879-05-100S-REI
Standard Molds: Platinum and Gold (5%), 100ml withReinforced Rim
SD05
6.10in3
100ml
Pt 100%
Mold &
Lid
78-06-100S
Standard Molds: Platinum, 100ml with Lid
SD05
6.10in3
100ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-100S
Standard Molds: Platinum and Gold (5%) 100ml, with Lid
SD05
6.10in3
100ml
Pt 95%/
Au 5%
Lid
7879-06(L)-100S
Standard Molds: Platinum and Gold (5%) , 100ml, Lid Only
SD05
6.10in3
100ml
Pt 100%
Mold &
Re-shaper
78-07-100S
Standard Molds: Platinum, 100ml with Re-shaper
SD05
6.10in3
100ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-100S
Standard Molds: Platinum and Gold (5%) , 100ml, with Re-shaper
SD05
6.10in3
100ml
Re-shaper
7879-07(R)-100S
Standard Molds: Platinum and Gold (5%) , 100ml, Re-shaper Only
SD05
6.10in3
100ml
Pt 100%
Mold
78-08-100S
Standard Molds: Platinum, 100ml with Pouring Spout
SD05
6.10in3
100ml
Pt 95%/
Au 5%
Mold
7879-08-100S
Standard Molds: Platinum and Gold (5%), 100ml with Pouring Spout
SD05
7.93in3
130ml
Pt 95%/
Au 5%
Mold
7879-05-130S
Standard Molds: Platinum and Gold (5%), 130ml
SD06
7.93in3
130ml
Pt 95%/
Au 5%
Mold
7879-05-130S-REI
Standard Molds: Platinum and Gold (5%), 130ml, Reinforced Rim
SD06
7.93in3
130ml
Pt 100%
Mold &
Lid
78-06-130S
Standard Molds: Platinum, 130ml with Lid
SD06
7.93in3
130ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-130S
Standard Molds: Platinum and Gold (5%), 130ml with Lid
SD06
7.93in3
130ml
Pt 95%/
Au 5%
Lid
7879-06(L)-130S
Standard Molds: Platinum and Gold (5%), 130ml, Lid Only
SD06
7.93in3
130ml
Pt 100%
Mold &
Re-Shaper
78-07-130S
Standard Molds: Platinum 130ml with Re-shaper
SD06
7.93in3
130ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-130S
Standard Molds: Platinum and Gold (5%), 130ml with Re-shaper
SD06
7.93in3
130ml
Re-shaper
7879-07(R)-130S
Standard Molds: Platinum and Gold (5%), 130ml, Re-shaper Only
SD06
7.93in3
130ml
Pt 100%
Mold
78-08-130S
Standard Molds: Platinum, 130ml with Pouring Spout
SD06
7.93in3
130ml
Pt 95%/
Au 5%
Mold
7879-08-130S
Standard Molds: Platinum and Gold (5%), 130ml with Pouring Spout
SD06
9.15in3
150ml
Pt 95%/
Au 5%
Mold
7879-05-150S
Standard Molds: Platinum and Gold (5%), 150ml
SD07
9.15in3
150ml
Pt 95%/
Au 5%
Mold
7879-05-150S-REI
Standard Molds: Platinum and Gold (5%), 150ml, Reinforced Rim
SD07
9.15in3
150ml
Pt 100%
Mold &
Lid
78-06-150S
Standard Molds: Platinum, 150ml with Lid
SD07
9.15in3
150ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-150S
Standard Molds: Platinum and Gold (5%), 150ml with Lid
SD07
9.15in3
150ml
Pt 95%/
Au 5%
Lid
7879-06(L)-150S
Standard Molds: Platinum and Gold (5%), 150ml, Lid Only
SD07
9.15in3
150ml
Pt 100%
Mold &
Re-Shaper
78-07-150S
Standard Molds: Platinum Dish, 150ml with Re-shaper
SD07
9.15in3
150ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-150S
Standard Molds: Platinum and Gold (5%), 150ml with Re-shaper
SD07
9.15in3
150ml
Re-shaper
7879-07(R)-150S
Standard Molds: Platinum and Gold (5%), 150ml, Re-shaper Only
SD07
9.15in3
150ml
Pt 100%
Mold
78-08-150S
Standard Molds: Platinum, 150ml with Pouring Spout
SD07
9.15in3
150ml
Pt 95%/
Au 5%
Mold
7879-08-150S
Standard Molds: Platinum and Gold (5%) , 150ml with Pouring Spout
SD07
12.20in3
200ml
Pt 95%/
Au 5%
Mold
7879-05-200S
Standard Molds: Platinum and Gold (5%), 200ml
SD08
12.20in3
200ml
Pt 95%/
Au 5%
Mold
7879-05-200S-REI
Standard Molds: Platinum and Gold (5%), 200ml, Reinforced Rim
SD08
12.20in3
200ml
Pt 100%
Mold &
Lid
78-06-200S
Standard Molds: Platinum, 200ml with Lid
SD08
12.20in3
200ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-200S
Standard Molds: Platinum and Gold (5%), 200ml, with Lid
SD08
12.20in3
200ml
Pt 95%/
Au 5%
Lid
7879-06(L)-200S
Standard Molds: Platinum and Gold (5%), 200ml, Lid Only
SD08
12.20in3
200ml
Pt 100%
Mold &
Re-Shaper
78-07-200S
Standard Molds: Platinum, 200ml with Re-shaper
SD08
12.20in3
200ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-200S
Standard Molds: Platinum and Gold (5%), 200ml with Re-shaper
SD08
12.20in3
200ml
Re-shaper
7879-07(R)-200S
Standard Molds: Platinum and Gold (5%), 200ml, Re-shaper Only
SD08
12.20in3
200ml
Pt 100%
Mold
78-08-200S
Standard Molds: Platinum, 200ml with Pouring Spout
SD08
12.20in3
200ml
Pt 95%/
Au 5%
Mold
7879-08-200S
Standard Molds: Platinum and Gold (5%), 200ml with Pouring Spout
SD08
18.31in3
300ml
Pt 95%/
Au 5%
Mold
7879-05-300S
Standard Molds: Platinum and Gold (5%), 300ml
SD09
18.31in3
300ml
Pt 95%/
Au 5%
Mold
7879-05-300S-REI
Standard Molds: Platinum and Gold (5%), 300ml, Reinforced Rim
SD09
18.31in3
300ml
Pt 100%
Mold &
Lid
78-06-300S
Standard Molds: Platinum, 300ml with Lid
SD09
18.31in3
300ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-300S
Standard Molds: Platinum and Gold (5%), 300ml, with Lid
SD09
18.31in3
300ml
Pt 95%/
Au 5%
Lid
7879-06(L)-300S
Standard Molds: Platinum and Gold (5%), 300ml, Lid Only
SD09
18.31in3
300ml
Pt 100%
Mold &
Re-Shaper
78-07-300S
Standard Molds: Platinum, 300ml with Re-shaper
SD09
18.31in3
300ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-300S
Standard Molds: Platinum and Gold (5%), 300ml with Re-shaper
SD09
18.31in3
300ml
Re-shaper
7879-07(R)-300S
Standard Molds: Platinum and Gold (5%), 300ml, Re-shaper Only
SD09
18.31in3
300ml
Pt 100%
Mold
78-08-300S
Standard Molds: Platinum, 300ml, with Pouring Spout
SD09
18.31in3
300ml
Pt 95%/
Au 5%
Mold
7879-08-300S
Standard Molds: Platinum and Gold (5%), 300ml, with Pouring Spout
SD09
24.41in3
400ml
Pt 95%/
Au 5%
Mold
7879-05-400S
Standard Molds: Platinum and Gold (5%), 400ml
SD10
24.41in3
400ml
Pt 95%/
Au 5%
Mold
7879-05-400S-REI
Standard Molds: Platinum and Gold (5%), 400ml, Reinforced Rim
SD10
24.41in3
400ml
Pt 100%
Mold &
Lid
78-06-400S
Standard Molds: Platinum, 400ml with Lid
SD10
24.41in3
400ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-400S
Standard Molds: Platinum and Gold (5%), 400ml with Lid
SD10
24.41in3
400ml
Pt 95%/
Au 5%
Lid
7879-06(L)-400S
Standard Molds: Platinum and Gold (5%), 400ml, Lid Only
SD10
24.41in3
400ml
Pt 100%
Mold &
Re-Shaper
78-07-400S
Standard Molds: Platinum, 400ml with Re-shaper
SD10
24.41in3
400ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-400S
Standard Molds: Platinum and Gold (5%), 400ml with Re-shaper
SD10
24.41in3
400ml
Re-shaper
7879-07(R)-400S
Standard Molds: Platinum and Gold (5%), 400ml, Re-shaper Only
SD10
24.41in3
400ml
Pt 100%
Mold
78-08-400S
Standard Molds: Platinum, 400ml with Pouring Spout
SD10
24.41in3
400ml
Pt 95%/
Au 5%
Mold
7879-08-400S
Standard Molds: Platinum and Gold (5%), 400ml, with Pouring Spout
SD10
30.51in3
500ml
Pt 95%/
Au 5%
Mold
7879-05-500S
Standard Molds: Platinum and Gold (5%), 500ml
SD11
30.51in3
500ml
Pt 95%/
Au 5%
Mold
7879-05-500S-REI
Standard Molds: Platinum and Gold (5%), 500ml with Reinforced Rim
SD11
30.51in3
500ml
Pt 100%
Mold &
Lid
78-06-500S
Standard Molds:: Platinum, 500ml with Lid
SD11
30.51in3
500ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-500S
Standard Molds: Platinum and Gold (5%), 500ml with Lid
SD11
30.51in3
500ml
Pt 95%/
Au 5%
Lid
7879-06(L)-500S
Standard Molds: Platinum and Gold (5%), 500ml, Lid Only
SD11
30.51in3
500ml
Pt 100%
Mold &
Re-Shaper
78-07-500S
Standard Molds: Platinum, 500ml with Re-shaper
SD11
30.51in3
500ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-500S
Standard Molds: Platinum and Gold (5%), 500ml with Re-shaper
SD11
30.51in3
500ml
Re-shaper
7879-07(R)-500S
Standard Molds: Platinum and Gold (5%) , 500ml, Re-shaper Only
SD11
30.51in3
500ml
Pt 100%
Mold
78-08-500S
Standard Molds: Platinum, 500ml with Pouring Spout
SD11
30.51in3
500ml
Pt 95%/
Au 5%
Mold
7879-08-500S
Standard Molds: Platinum and Gold (5%), 500ml with Pouring Spout
SD11
36.61in3
600ml
Pt 95%/
Au 5%
Mold
7879-05-600S
Standard Molds: Platinum and Gold (5%), 600ml
SD12
36.61in3
600ml
Pt 95%/
Au 5%
Mold
7879-05-600S-REI
Standard Molds: Platinum and Gold (5%), 600ml with Reinforced Rim
SD12
36.61in3
600ml
Pt 100%
Mold &
Lid
78-06-600S
Standard Molds: Platinum, 600ml with Lid
SD12
36.61in3
600ml
Pt 95%/
Au 5%
Mold &
Lid
7879-06-600S
Standard Molds:Platinum and Gold (5%), 600ml with Lid
SD12
36.61in3
600ml
Pt 95%/
Au 5%
Lid
7879-06(L)-600S
Standard Molds: Platinum and Gold (5%), 600ml, Lid Only
SD12
36.61in3
600ml
Pt 100%
Mold &
Re-Shaper
78-07-600S
Standard Molds: Platinum, 600ml with Re-shaper
SD12
36.61in3
600ml
Pt 95%/
Au 5%
Mold &
Re-shaper
7879-07-600S
Standard Molds: Platinum and Gold (5%), 600ml with Re-shaper
SD12
36.61in3
600ml
Re-shaper
7879-07(R)-600S
Standard Molds: Platinum and Gold (5%), 600ml, Re-shaper Only
SD12
36.61in3
600ml
Pt 100%
Mold
78-08-600S
Standard Molds: Platinum, 600ml with Pouring Spout
SD12
36.61in3
600ml
Pt 95%/
Au 5%
Mold
7879-08-600S
Standard Molds: Platinum and Gold (5%), 600ml with Pouring Spout
SD12
