Platinum Ware: xrFuse Specific

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Specific for xrFuse Fusion machines

Precision Made

Variety of Crucibles

Variety of Mold Sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® platinum crucibles and molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

More Information

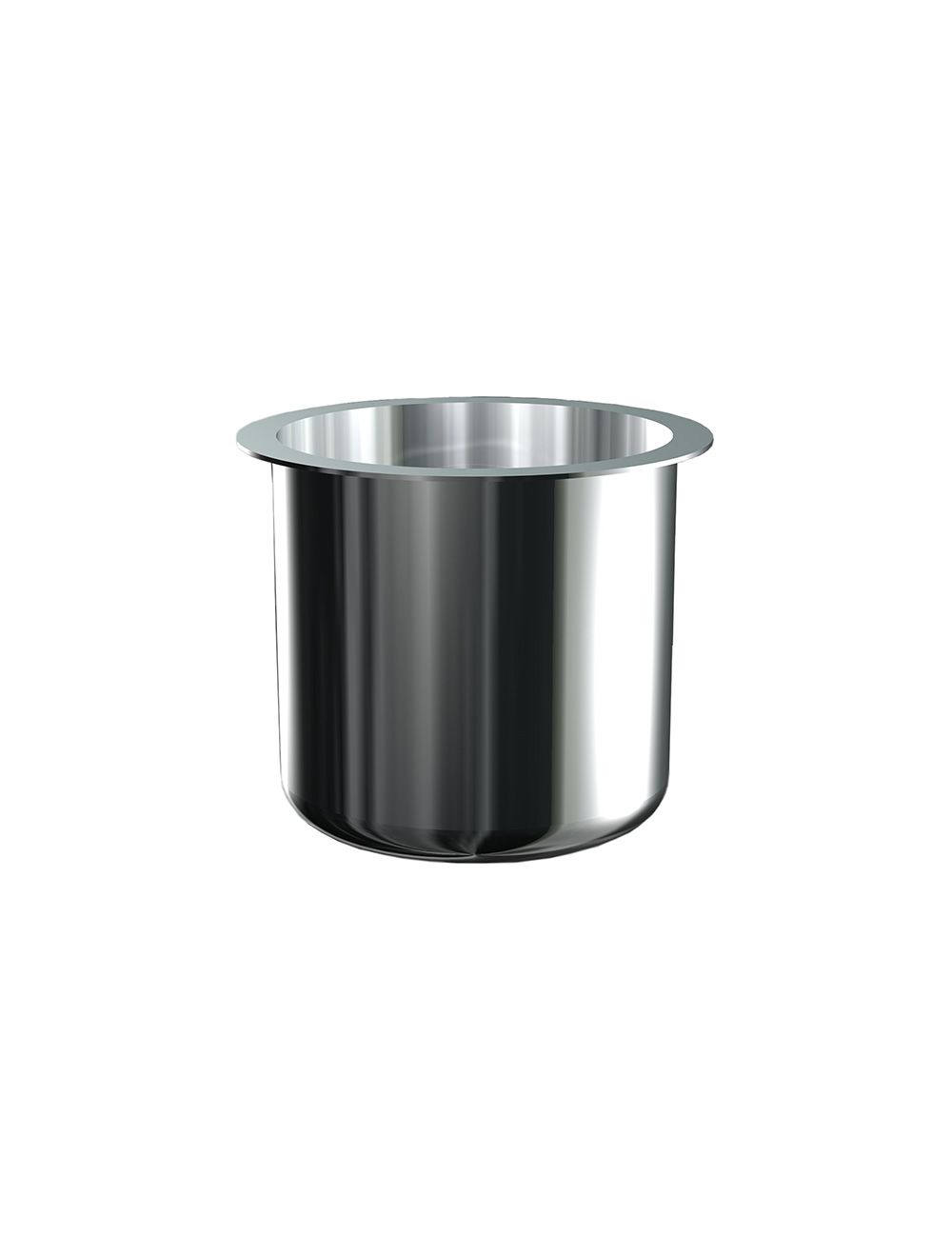

xrFuse Specific Crucible

The following table lists some critical dimensions for the xrFuse Specific Crucibles.

Please refer to the dimensional image for the xrFuse Crucible.

Size

Internal

Top

Diameter

(D)

[mm]

Internal Bottom

Diameter

(UD)

[mm]

Height

(H)

[mm]

Bottom

Thickness

(s)

[mm]

Weight

[g]

Comments

XC01

35.3

17

37.1

0.40

32



XC02

33.0

22

43.0

0.40

32

Reinforced Rim



xrFuse Specific Molds

The following table lists some critical dimensions for the xrFuse Specific Molds.

Please refer to the dimensional image for the xrFuse Molds.

Size

Internal

Top

Diameter

(D)

[mm]

Internal Bottom

Diameter

(UD)

[mm]

Total Flange diameter

(AD)

[mm]

Height

(H)

[mm]

Weight

[g]

Comments

XD01

32

30

42

3

TBD

Round Version

XD02

32

30

46

3

TBD

Round Version

XD03

34

32

46

3

34

Round Version

XD04

34

32

46

3

42

Round Version

XD05

36

34

55

3

TBD

Round Version

XD06

36

39

52

3

54

Round Version

XD07

41

39

56

3

80

Round Version

Grouped product items
Cat No: Description Size Format Type Diameter Qty
7879-09-017-XR xrFuse Platinum and Gold (5%) Fusion Ware Crucible, 17mm XC01 Crucible Pt 95%/
Au 5%
0.67in
17.0mm
7879-09-022-XR xrFuse Platinum and Gold (5%) Fusion Ware Crucible, 22mm, Reinforced Rim XC02 Crucible Pt 95%/
Au 5%
0.87in
22.0mm
7879-10-030-042-XR xrFuse Platinum and Gold (5%) Mold, 30mm/42mm XD01 Mold Pt 95%/
Au 5%
1.18in/1.65in
30.0mm/42.0mm
7879-10-030-046-XR xrFuse Platinum and Gold (5%) Mold, 30mm/46mm XD02 Mold Pt 95%/
Au 5%
1.18in/1.81in
30.0mm/46.0mm
7879-10-032-046A-XR xrFuse Platinum and Gold (5%) Mold, 32mm/46mm XD03 Mold Pt 95%/
Au 5%
1.26in/1.81in
32.0mm/46.0mm
7879-10-032-046B-XR xrFuse Platinum and Gold (5%) Mold, 32mm/46mm XD04 Mold Pt 95%/
Au 5%
1.26in/1.81in
32.0mm/46.0mm
7879-10-034-055-XR xrFuse Platinum and Gold (5%) Mold, 34mm/55mm XD05 Mold Pt 95%/
Au 5%
1.34in/2.17in
34.0mm/55.0mm
7879-10-039-052-XR xrFuse Platinum and Gold (5%) Mold, 39mm/52mm XD06 Mold Pt 95%/
Au 5%
1.54in/2.05in
39.0mm/52.0mm
7879-10-039-056-XR xrFuse Platinum and Gold (5%) Mold, 39mm/56mm XD07 Mold Pt 95%/
Au 5%
1.54in/2.20in
39.0mm/56.0mm
