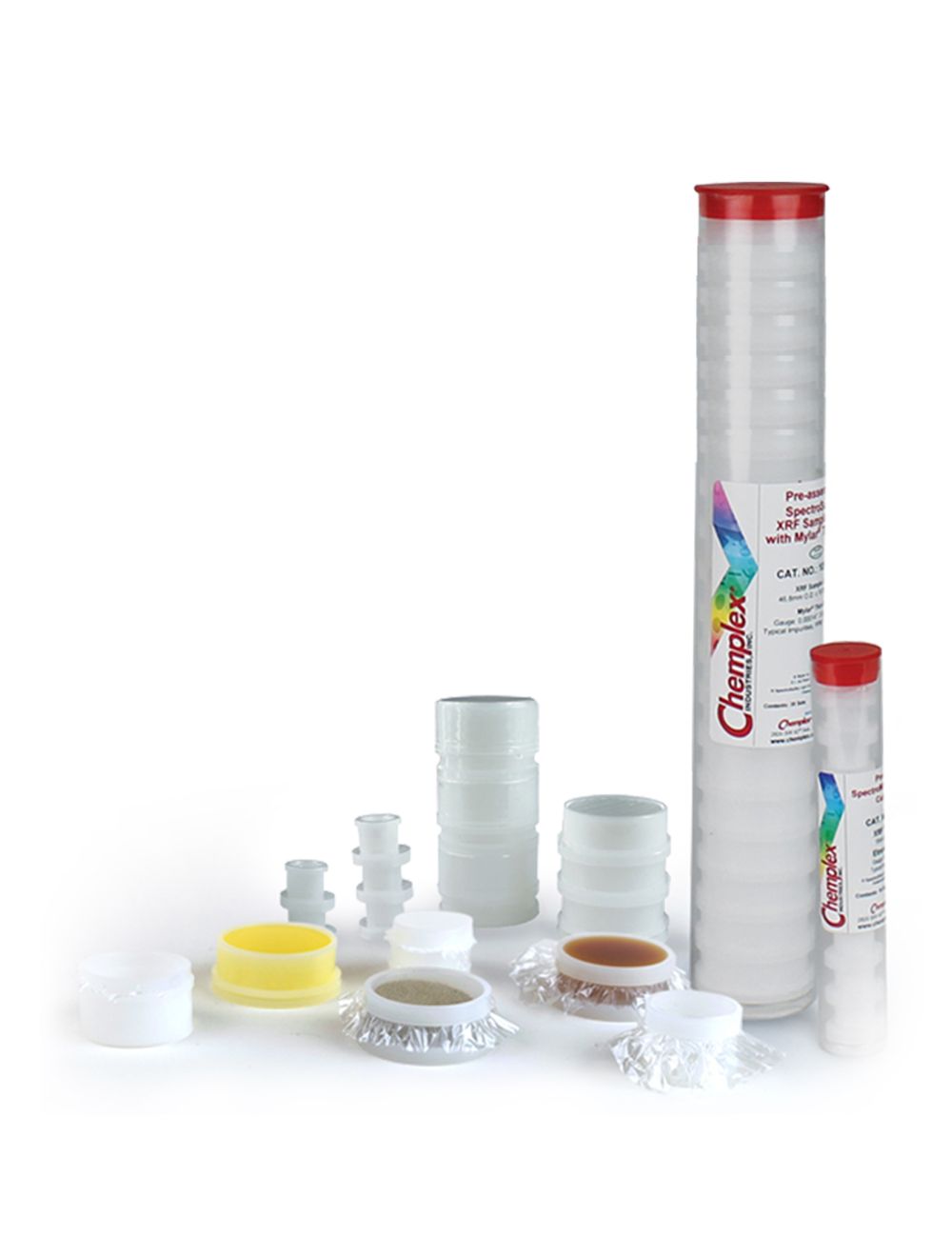

SERIES 10P: PreAssembled Sample Cups

For the ultimate convenience, Chemplex XRF Sample Cups and Thin-Films are available PreAssembled.

Thin-Film already attached to the XRF Sample Cup

XRF Sample Cups stacked in a tube for maximum Thin-Film protection

Optional Dispensing Stand

Stackable Pre-assembled XRF Sample cups are available with a user choice of thin-film material and thickness. They are designed to vertically stack with the thin-film window safely nestled and protected by adjacent sample cups for maximum thin-film window protection. Please contact our sales team at sales@chemplex.com for more information.

Grouped product items
Cat. No. Outside Dia. Max O.D. Aperture Vol Type Thickness Height Qty/Pack Price Qty
10P-3012
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Mylar®
2.5µm
0.76" (19.4mm)
10
$17
10P-3014
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Mylar®
3.6µm
0.76" (19.4mm)
10
$17
10P-3016
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Mylar®
6.0µm
0.76" (19.4mm)
10
$17
10P-3017A
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Prolene®
3.0µm
0.76" (19.4mm)
10
$17
10P-3017
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Prolene®
4.0µm
0.76" (19.4mm)
10
$17
10P-3019
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Polypropylene
6.0µm
0.76" (19.4mm)
10
$17
10P-3024
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Polypropylene
12.0µm
0.76" (19.4mm)
10
$17
10P-3095
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Etnom®
1.5µm
0.76" (19.4mm)
10
$35
10P-3031
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Etnom®
2.0µm
0.76" (19.4mm)
10
$20
10P-3029
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Etnom®
2.5µm
0.76" (19.4mm)
10
$20
10P-3025
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Etnom®
3.0µm
0.76" (19.4mm)
10
$20
10P-3090
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
UltraPolyester®
1.5µm
0.76" (19.4mm)
10
$35
10P-3080
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Zythene®
6.0µm
0.76" (19.4mm)
10
$20
10P-3021
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1.8ml
Kapton®
7.5µm
0.76" (19.4mm)
10
$50
10P-32S11
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Mylar®
2.5µm
1.15" (29.2mm)
10
$10
10P-32S13
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Mylar®
3.6µm
1.15" (29.2mm)
10
$10
10P-32S15
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Mylar®
6.0µm
1.15" (29.2mm)
10
$10
10P-32S17A
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Prolene®
3.0µm
1.15" (29.2mm)
10
$10
10P-32S17
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Prolene®
4.0µm
1.15" (29.2mm)
10
$10
10P-32S19
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Polypropylene
6.0µm
1.15" (29.2mm)
10
$10
10P-32S23
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Polypropylene
12.0µm
1.15" (29.2mm)
10
$10
10P-32S31
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Etnom®
2.0µm
1.15" (29.2mm)
10
$25
10P-5432
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
2.0µm
1.39" (35.3mm)
20
$50
10P-8481
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Zythene®
6.0µm
0.73" (46.7mm)
38
$95
10P-5430
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
2.5µm
1.39" (35.3mm)
20
$50
10P-5426
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
3.0µm
1.39" (35.3mm)
20
$50
10P-32S95
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Etnom®
1.5µm
1.15" (29.2mm)
10
$35
10P-5480
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Zythene®
6.0µm
1.39" (35.3mm)
20
$50
10P-8421
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Kapton®
7.5µm
0.73" (46.7mm)
38
$190
10P-32S29
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Etnom®
2.5µm
1.15" (29.2mm)
10
$25
10P-5421
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Kapton®
7.5µm
1.39" (35.3mm)
20
$100
10P-8713
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Mylar®
2.5µm
0.73" (46.7mm)
38
$38
10P-5490
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
UltraPolyester®
1.5µm
1.39" (35.3mm)
20
$70
10P-8717A
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Prolene®
3.0µm
0.73" (46.7mm)
38
$38
10P-5424
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Polypropylene
12.0µm
1.39" (35.3mm)
20
$20
10P-32S25
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Etnom®
3.0µm
1.15" (29.2mm)
10
$25
10P-8714
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Mylar®
3.6µm
0.73" (46.7mm)
38
$38
10P-P214
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Mylar®
3.6µm
1.57" (39.2mm)
18
$18
10P-P216
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Mylar®
6.0µm
1.57" (39.2mm)
18
$18
10P-32S90
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
UltraPolyester®
1.5µm
1.15" (29.2mm)
10
$35
10P-8715
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Mylar®
6.0µm
0.73" (46.7mm)
38
$38
10P-P220
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Polypropylene
6.0µm
1.57" (39.2mm)
18
$19
10P-32S80
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Zythene®
6.0µm
1.15" (29.2mm)
10
$25
10P-8717
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Prolene®
4.0µm
0.73" (46.7mm)
38
$38
10P-40ox17A
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Prolene®
3.0µm
1.51" (38.4mm)
16
$16
10P-P224
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Polypropylene
12.0µm
1.57" (39.2mm)
18
$19
10P-32S21
1.24" (31.5mm)
1.36" (34.5mm)
1.04" (26.4mm)
9ml
Kapton®
7.5µm
1.15" (29.2mm)
10
$50
10P-P218
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Prolene®
4.0µm
1.57" (39.2mm)
18
$19
10P-8720
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Ppolypropylene
6.0µm
0.73" (46.7mm)
38
$38
10P-P295
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
1.5µm
1.39" (35.3mm)
18
$63
10P-40ox14
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Mylar®
3.6µm
1.51" (38.4mm)
16
$16
10P-8724
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Ppolypropylene
12.0µm
0.73" (46.7mm)
38
$38
10P-40ox12
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Mylar®
2.5µm
1.51" (38.4mm)
16
$16
10P-P230
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
2.5µm
1.39" (35.3mm)
18
$45
10P-40ox16
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Mylar®
6.0µm
1.51" (38.4mm)
16
$16
10P-8795
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
1.5µm
0.73" (46.7mm)
38
$133
10P-40ox24
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Polypropylene
12.0µm
1.51" (38.4mm)
16
$16
10P-40ox17
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Prolene®
4.0µm
1.51" (38.4mm)
16
$16
10P-P226
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
3.0µm
1.39" (35.3mm)
18
$45
10P-P232
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
2.0µm
1.39" (35.3mm)
18
$45
10P-8732
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
2.0µm
0.73" (46.7mm)
38
$95
10P-8730
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
2.5µm
0.73" (46.7mm)
38
$95
10P-8414
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Mylar®
3.6µm
0.73" (46.7mm)
38
$38
10P-40ox19
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Polypropylene
6.0µm
1.51" (38.4mm)
16
$16
10P-8725
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
3.0µm
0.73" (46.7mm)
38
$95
10P-P212
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Mylar®
2.5µm
1.57" (39.2mm)
18
$18
10P-8415
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Mylar®
6.0µm
0.73" (46.7mm)
38
$38
10P-8790
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
UltraPolyester®
1.5µm
0.73" (46.7mm)
38
$133
10P-40ox95
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Etnom®
1.5µm
1.51" (38.4mm)
16
$56
10P-8781
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Zythene®
6.0µm
0.73" (46.7mm)
38
$95
10P-40ox32
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Etnom®
2.0µm
1.51" (38.4mm)
16
$40
10P-8417A
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Prolene®
3.0µm
0.73" (46.7mm)
38
$38
10P-8413
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Mylar®
2.5µm
0.73" (46.7mm)
38
$38
10P-8417
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Prolene®
4.0µm
0.73" (46.7mm)
38
$38
10P-40ox90
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
UltraPolyester®
1.5µm
1.51" (38.4mm)
16
$56
10P-8721
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Kapton®
7.5µm
0.73" (46.7mm)
38
$190
10P-P217A
1.76" (44.7mm)
1.81" (46.0mm)
1.57" (39.3mm)
22ml
Prolene®
3.0µm
1.57" (39.2mm)
18
$19
10P-40ox30
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Etnom®
2.5µm
1.51" (38.4mm)
16
$40
10P-8420
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Polypropylene
6.0µm
0.73" (46.7mm)
38
$38
10P-40ox80
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Zythene®
6.0µm
1.51" (38.4mm)
16
$40
10P-40ox26
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Etnom®
3.0µm
1.51" (38.4mm)
16
$40
10P-5417A
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Prolene®
3.0µm
1.39" (35.3mm)
20
$20
10P-5414
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Mylar®
3.6µm
1.39" (35.3mm)
20
$20
10P-8424
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Polypropylene
12.0µm
0.73" (46.7mm)
38
$38
10P-8495
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
1.5µm
0.73" (46.7mm)
38
$133
10P-5418
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Prolene®
4.0µm
1.39" (35.3mm)
20
$20
10P-5416
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Mylar®
6.0µm
1.39" (35.3mm)
20
$20
10P-5495
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Etnom®
1.5µm
1.39" (35.3mm)
20
$70
10P-8430
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
2.5µm
0.73" (46.7mm)
38
$95
10P-40ox21
1.61" (40.8mm)
1.61" (40.8mm)
1.13" (28.7mm)
24.8ml
Kapton®
7.5µm
1.51" (38.4mm)
16
$80
10P-5420
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Polypropylene
6.0µm
1.39" (35.3mm)
20
$20
10P-8425
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
3.0µm
0.73" (46.7mm)
38
$95
10P-5412
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Mylar®
2.5µm
1.39" (35.3mm)
20
$20
10P-8490
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
UltraPolyester®
1.5µm
0.73" (46.7mm)
38
$133
10P-8432
1.69" (42.9mm)
1.84" (46.7mm)
1.44" (36.6mm)
15ml
Etnom®
2.0µm
0.73" (46.7mm)
38
$95
10P-P290
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
UltraPolyester®
1.5µm
1.39" (35.3mm)
18
$63
10P-P281
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Zythene®
6.0µm
1.39" (35.3mm)
18
$45
10P-P221
1.58" (40.1mm)
1.62" (41.3mm)
1.38" (35.0mm)
28ml
Kapton®
7.5µm
1.39" (35.3mm)
18
$90
