Platinum Ware: Nieka Specific

Chemplex® platinum ware consists of one or more highly refined precious metals which makes them a perfect fit for XRF, ICP and AA analysis. This platinum ware is precision manufactured to exact dimensions and weights followed by dynamic polishing stages to ensure the highest degree of quality. Each individual component is engraved with a serial number to aid in asset tracking.

Features

Specific for Nieka Fusion machines

Precision Made

Variety of Mold sizes

Various Alloys (most common)

Platinum 100%

Platinum 95%, Gold 5%

Serialized for asset tracking

Platinum Replacement Exchange Program (PREP)

Chemplex® platinum ware consists of highly refined precious metals: 100% platinum or 95% platinum and 5% gold. with others are available upon request. The combination of platinum and gold imparts a negative coefficient of adhesion characteristic commonly referred to as “non-wetting. This important feature enables complete pours of solubilized samples for ICP, AA and XRF analysis with avoidance of potential elusive droplets adhering to the platinum ware. For ICP and AA analysis, the molten pour is transferred to a beaker for further processing. With XRF analysis, the molten sample is poured into a mold and allowed to cool creating what is referred to a bead. Upon cooling to solidification, the sample disc is easily removed for direct XRF analysis without further preparation.

In the manufacturing of Chemplex® platinum crucibles and molds extra precautionary care is taken to avoid introducing undesirable surface markings. Even the smallest imperfection may potentially influence the performance of the crucible, the mold and quality of the sample disc surface. All Chemplex® platinum ware is highly polished to mirror quality reflection, thoroughly cleaned and inspected prior to packaging and delivery.

Platinum Replacement Exchange Program (PREP)

Instead of purchasing new platinum ware the Chemplex® Platinum Replacement Exchange program may be right for you. Please click here for details on the PREP or contact our team of experts at fusion@chemplex.com

More Information

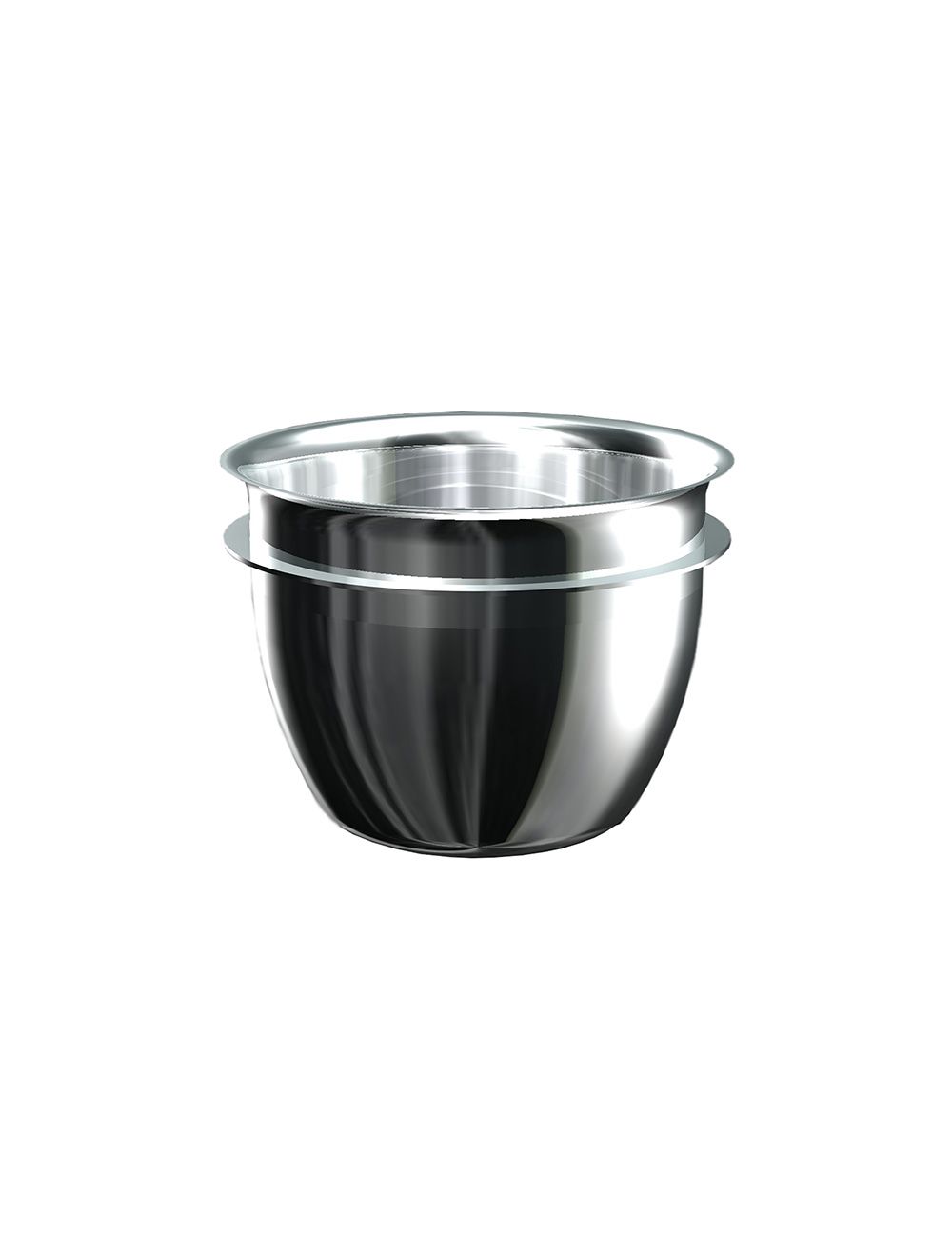

Nieka Specific Crucible

The following table lists some critical dimensions for the Nieka Specific Crucibles.

Please refer to the dimensional image for the Nieka Crucibles.

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Height

(H)

[mm]

Bottom

thickness

(s)

[mm]

Weight

[g]

Comments

NC01

36.5

20

32

0.34

30

Flat bottom




Nieka Specific Molds

The following table lists some critical dimensions for the Nieka Specific Molds.

Please refer to the dimensional image for the Nieka Molds.

Size

Internal

Top

Diameter

(OD)

[mm]

Internal

Bottom

Diameter

(UD)

[mm]

Total Flange Diameter

(AD)

[mm]

Height

(H)

[mm]

Bottom

thickness

(s)

[mm]

Weight

[g]

Comments

ND01

32

30

39

6

0.8

21

Round version

ND02

32

30

39

6

1.0

27

Round version

ND03

34

32

41

6

0.8

23

Round version

ND04

34

32

41

6

1.0

29

Round version

ND05

37

35

44

6

0.8

26

Round version

ND06

37

35

44

6

1.0

33

Round version

ND07

40

38

48

6

0.8

34

Round version

ND08

40

38

48

6

1.0

43

Round version

ND09

42

40

49

6

0.8

35

Round version

ND10

42

40

49

6

1.0

43

Round version

Grouped product items
Cat No: Description Size Format Type Diameter Qty
7879-09-020(1)-NI Nieka Platinum and Gold (5%) Fusion Ware Crucible, 20mm, Flat Bottom NC01 Crucible Pt 95%/
Au 5%
0.79in
20.0mm
7879-10-030-NI Nieka Platinum and Gold (5%) Mold, 30mm ND01 Mold Pt 95%/
Au 5%
1.18In
30.0mm
7879-10-030-NI-REI Nieka Platinum and Gold (5%) Mold, 30mm, Reinforced ND02 Mold Pt 95%/
Au 5%
1.18In
30.0mm
7879-10-032-NI Nieka Platinum and Gold (5%) Mold, 32mm ND03 Mold Pt 95%/
Au 5%
1.26in
32.0mm
7879-10-032-NI-REI Nieka Platinum and Gold (5%) Mold, 32mm, Reinforced ND04 Mold Pt 95%/
Au 5%
1.26in
32.0mm
7879-10-035-NI Nieka Platinum and Gold (5%) Mold, 35mm ND05 Mold Pt 95%/
Au 5%
1.38in
35.0mm
7879-10-035-NI-REI Nieka Platinum and Gold (5%) Mold, 35mm, Reinforced ND06 Mold Pt 95%/
Au 5%
1.38in
35.0mm
7879-10-038-NI Nieka Platinum and Gold (5%) Mold, 38mm ND07 Mold Pt 95%/
Au 5%
1.50in
38.0mm
7879-10-038-NI-REI Nieka Platinum and Gold (5%) Mold, 38mm, Reinforced ND08 Mold Pt 95%/
Au 5%
1.50in
38.0mm
7879-10-040-NI Nieka Platinum and Gold (5%) Mold, 40mm ND09 Mold Pt 95%/
Au 5%
1.57in
40.0mm
7879-10-040-NI-REI Nieka Platinum and Gold (5%) Mold, 40mm, Reinforced ND10 Mold Pt 95%/
Au 5%
1.57in
40.0mm
